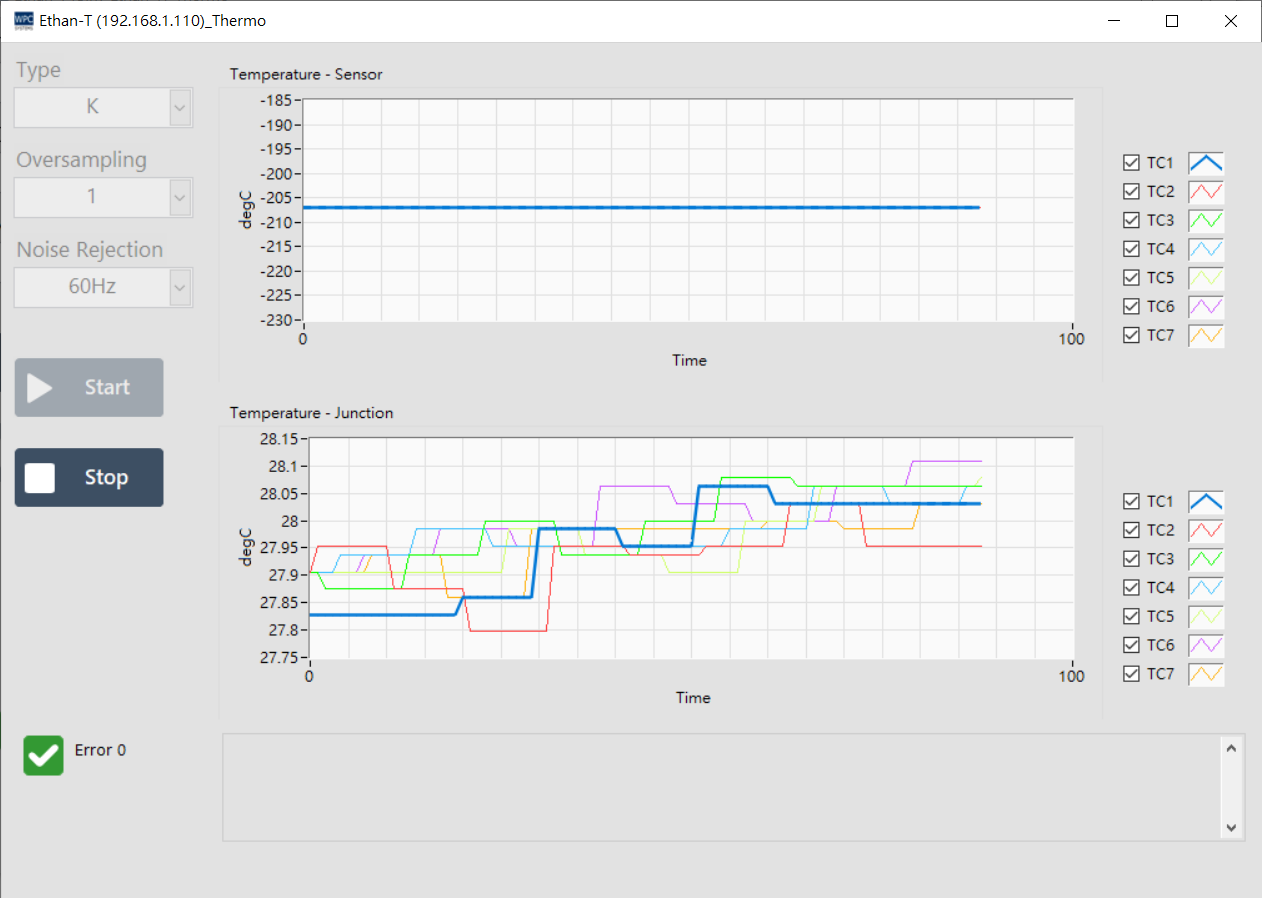

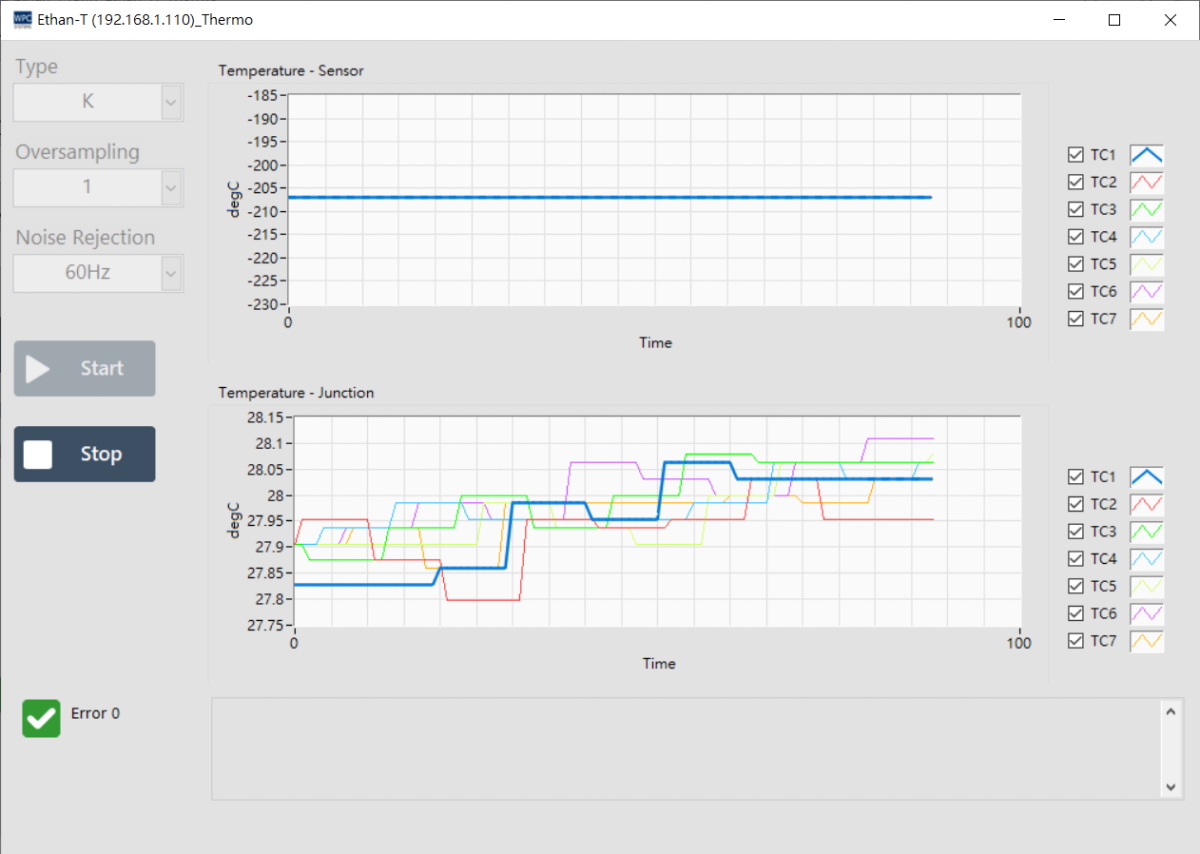

The Thermo panel is specifically designed for temperature measurement, supporting Thermocouple and RTD (Resistance Temperature Detector) sensors. It provides various sensor type selections and signal filtering functions.
Supported Products and Ports
Please confirm the port settings according to your sensor type and device model:
1. Thermocouple
2. RTD (Resistance Temperature Detector)
Parameter Settings
| Parameter | Description |
|---|
| Type | Select sensor type (e.g., B, E, J, K, N, R, S, T type thermocouples). |
| Oversampling | Oversampling setting (2, 4, 8, 16, 32).
Increasing the number of samples to take an average can reduce noise but will decrease the update rate. |
| Noise Rejection | Power frequency noise rejection setting (60Hz or 50Hz), used to filter out mains interference. |
Operation Description
| Button | Function |
|---|
| Start | Start reading temperature values. |
| Stop | Stop reading. |
