Matrix

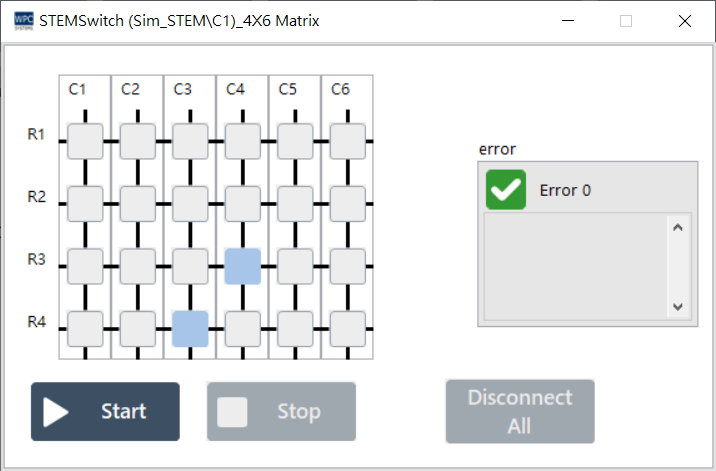

The Matrix (Matrix Switch) panel provides users with control over the connection status of matrices and multiplexers. Through a visual interface, you can set cross-point connections for rows (Row) and columns (Column).

Operation Description

Clicking on the intersections on the grid allows you to toggle between Connect or Disconnect status.

Button	Function
Start	Enable the Matrix control function and execute current connection settings.
Stop	Stop control.
Disconnect All	Immediately disconnect all cross-point connections.
