DPOT
DPOT (Digital Potentiometer) panel provides users with the ability to control digital potentiometers, which can be applied to analog circuit parameter adjustment or sensor simulation.
Supported Products
| Product Name | Description |
|---|---|
Ethan-P | 4-channel Digital Potentiometer Output (Range: 300 ~ 50k Ω) |
Operation Instructions

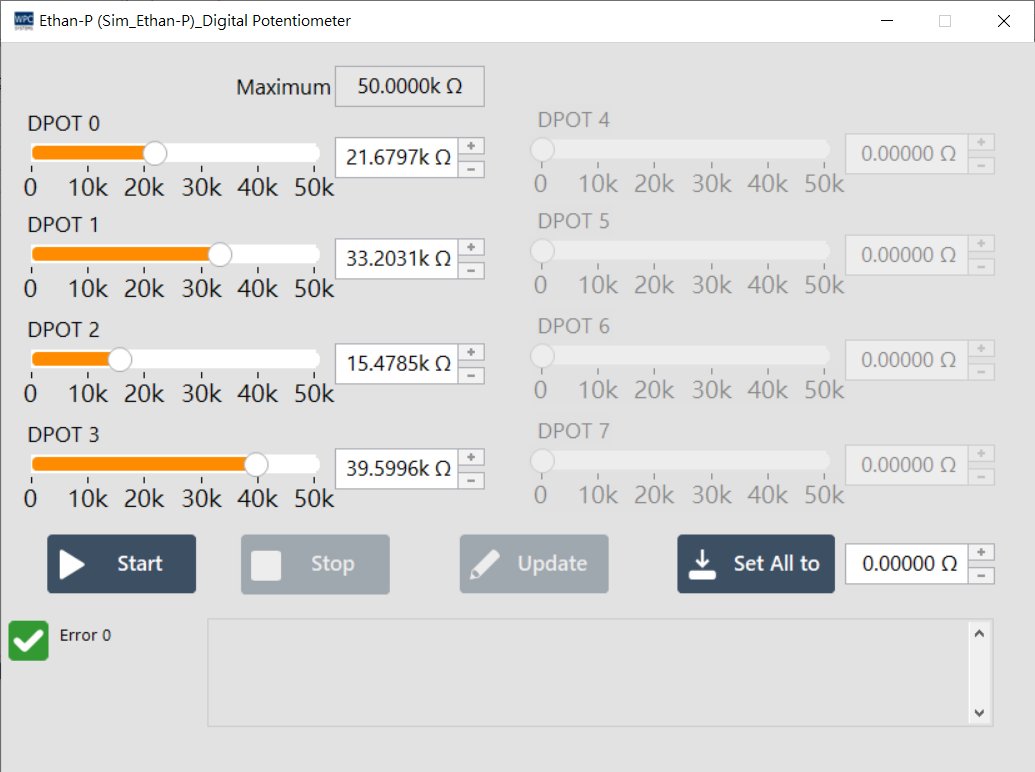

You can directly set the resistance value through the input box in the interface, or use the slider for adjustment.
Control Buttons
| Button | Function |
|---|---|
| Start | Enable DPOT control function. |
| Stop | Stop DPOT control function. |
| Update | Write the set resistance value to the specified channel. |
| Set all to | Set all channels to a unified value. |
