Ethan-P

Ethan-P provides 4-channel 10-bit digital potentiometers with a resistance range of 300Ω ~ 50kΩ and an update rate of 500Hz. It allows for programmable control of resistance values, suitable for analog circuit tuning and calibration applications.

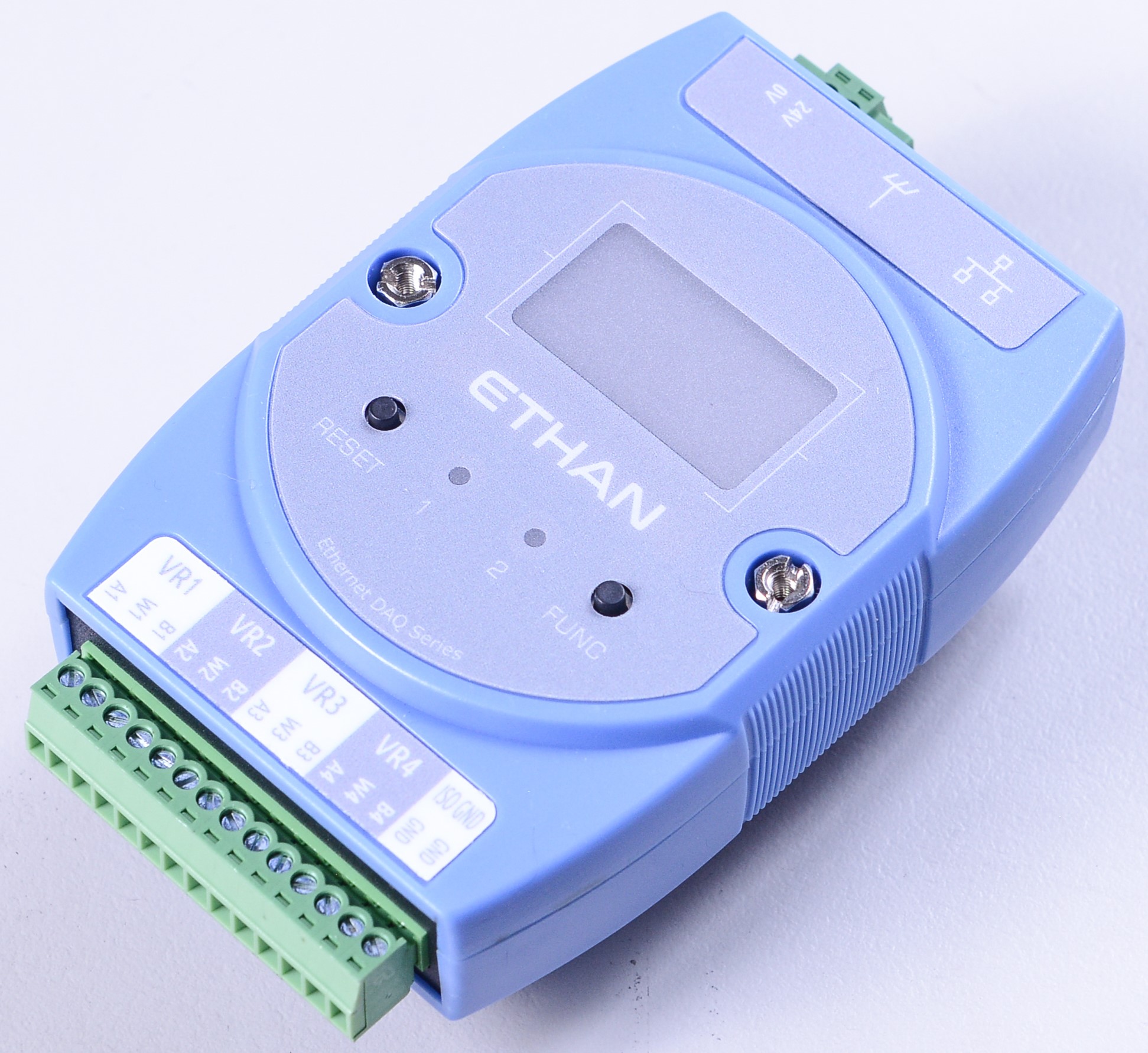

Product Appearance​

Ethan-P Appearance

Key Features​

  1. Power input: 24VDC
  2. 10/100 Base-T Ethernet interface
  3. 4-channel variable digital potentiometers & 10-bit resolution
  4. Output range: 300Ω to 50kΩ
  5. Maximum update rate: 500Hz
  6. Supports Python, C#, and LabVIEW

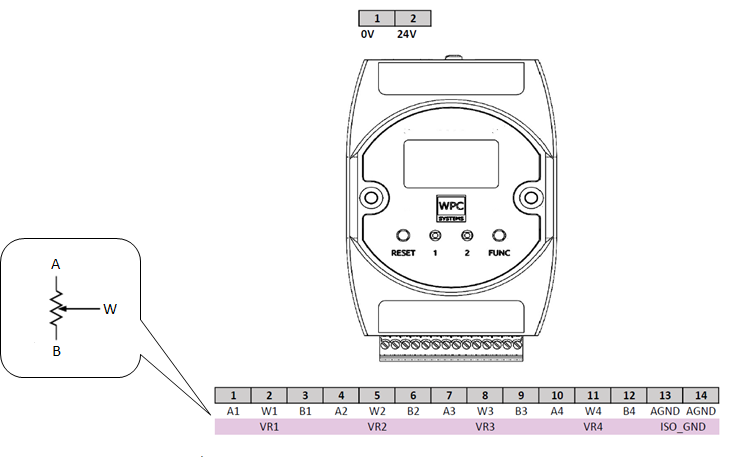

Pin Definition​

Ethan-P Pinout
