Ethan-D integrates 8-channel digital input (DI) and 6-channel relay output (NPN drive), while providing 2-channel PWM output, suitable for industrial automation control and digital signal processing.

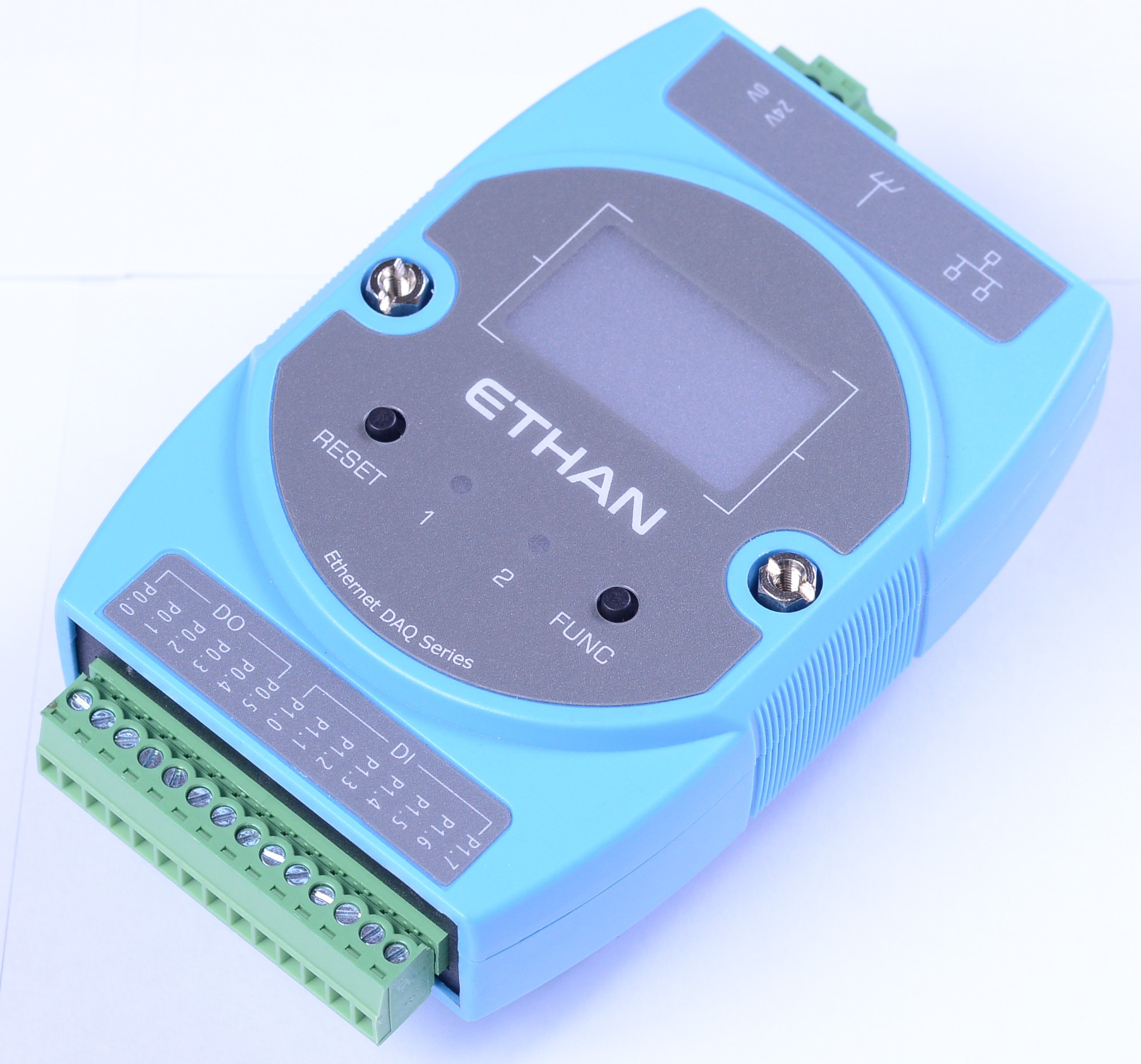

Product Appearance
Key Features
- Power input: 24VDC
- 10/100 Base-T Ethernet interface
- Digital Output (DO): 6-channel NPN, 24V opto-isolated
- Digital Input (DI): 8-channel NPN, 24V opto-isolated
- 2-channel PWM output
- Supports Python, C#, and LabVIEW

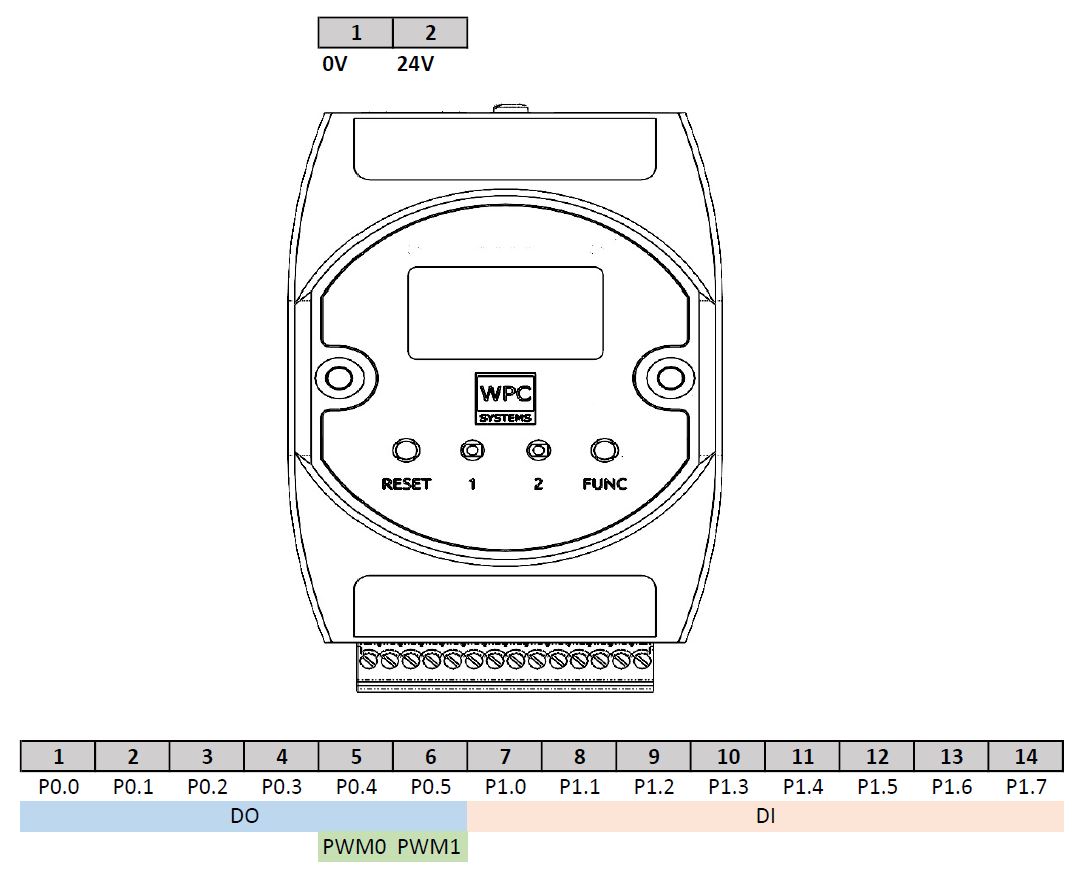

Pin Definition
Ethan-D Detailed Specifications
| Parameter | Test Conditions/Notes | Min | Typical | Max | Unit |
|---|
| Input Type | Sourcing input | | | | |
| Isolation Voltage | | | 2.5 | 30 | kV |
| Input High Voltage | | | 30 | | V |
| Input Low Voltage | | | 12 | | V |
| Input Impedance | | | 6.8k | | Ω |
Industrial Digital Output
| Parameter | Test Conditions/Notes | Min | Typical | Max | Unit |
|---|
| Output Type | Sinking output | | | | |
| Isolation Voltage | | | 2.5 | 30 | kV |
| Output High Voltage | | | 30 | | V |
| Output Low Voltage | | | 12 | | V |
| Output Sink Current (Peak Surge) | | | -400 | -500 | mA |
| Output Sink Current (Continuous) | | | -300 | -350 | mA |
