Ethan-A2

Ethan-A2 provides 8-channel 24-bit high-precision analog input, with a sampling rate of up to 10kHz and an input range of ±13.75V, suitable for precision applications requiring high-resolution measurement.

Product Appearance​

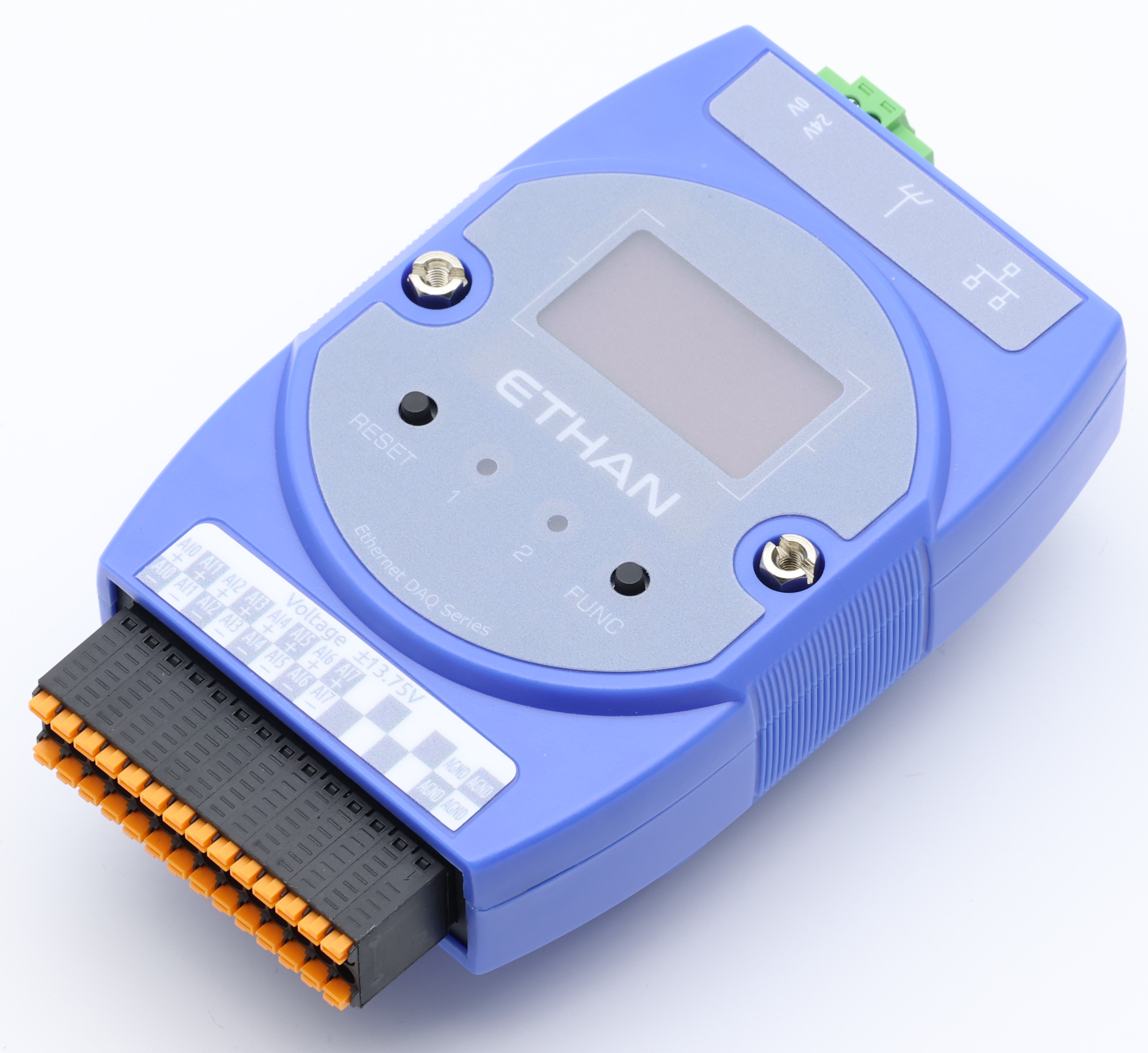

Ethan-A2 Appearance

Key Features​

  1. Power input: 24VDC
  2. 10/100 Base-T Ethernet interface
  3. Analog Input (AI): 8-channel synchronous sampling & 24-bit single-ended resolution
  4. Maximum sampling rate: 10kHz
  5. Input range: ±13.75V
  6. Supports Python, C#, and LabVIEW

Pin Definition​

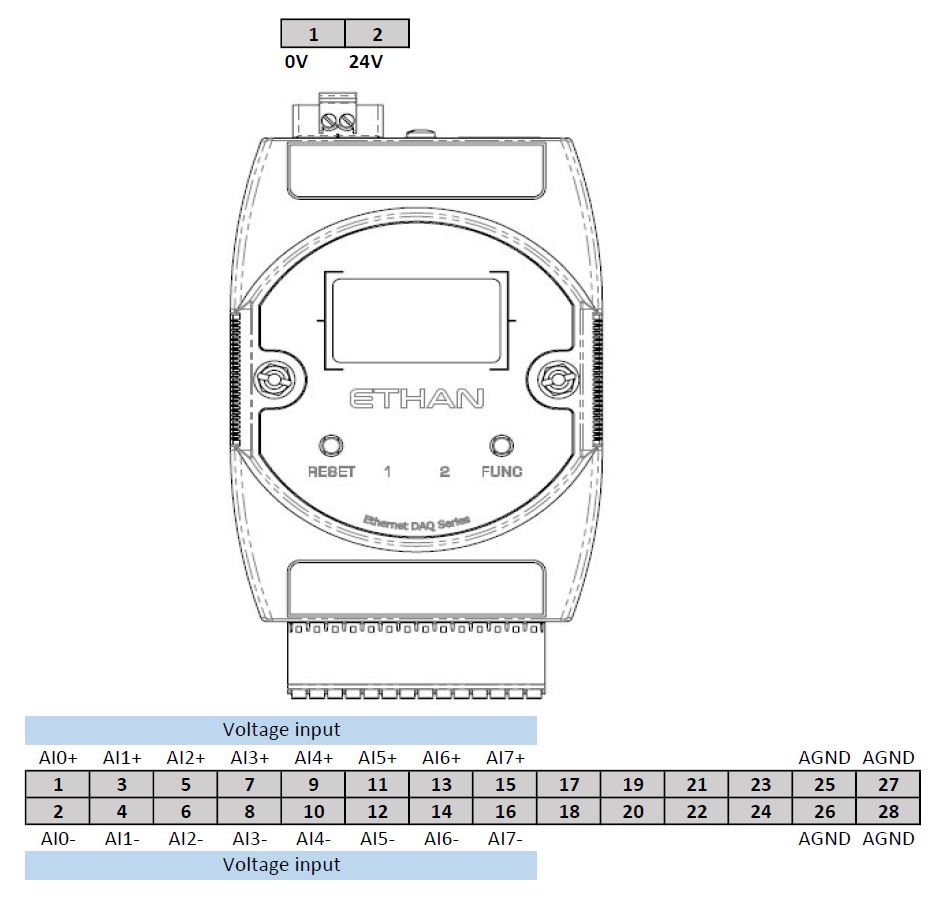

Ethan-A2 Pinout
