Ethan-O
Ethan-O provides 8-channel 16-bit analog output (±10V), with an update rate of up to 1kHz. It supports arbitrary waveform generation, making it suitable for signal simulation and control applications.

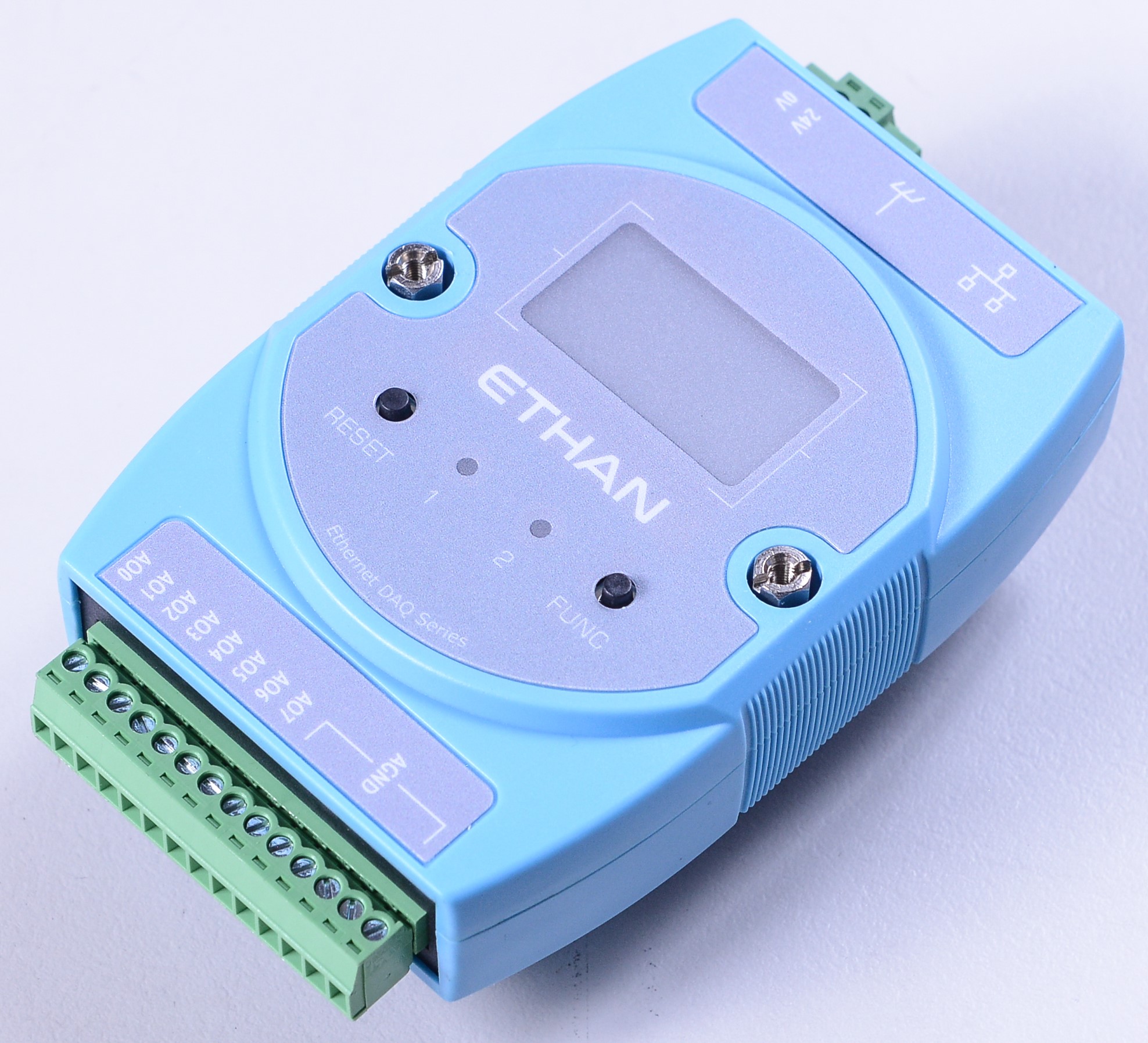

Product Appearance
Key Features
- Power input: 24VDC
- 10/100 Base-T Ethernet interface
- Analog Output (AO): 8-channel synchronous output & 16-bit single-ended resolution
- Output range: ±10V
- Maximum update rate: 1kHz
- Supports waveform generation
- Supports Python, C#, and LabVIEW

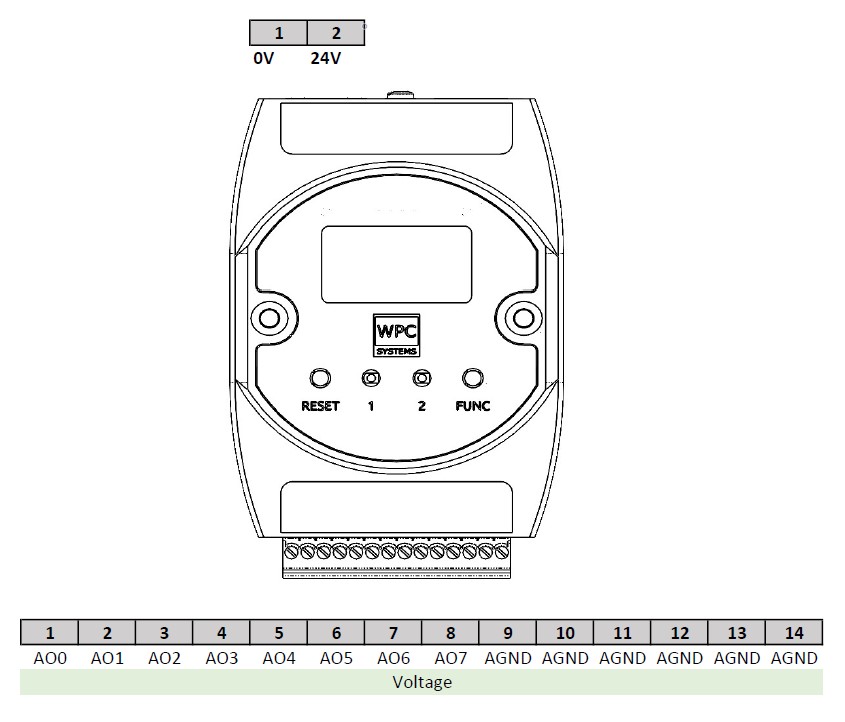

Pin Definition
Ethan-O Detailed Specifications
| Parameter | Test Conditions/Notes | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Channels | 8 | ch | |||
| Output High Voltage | 9.7 | 5 | |||
| Output Low Voltage | -9.7 | 0 | |||
| Resolution | 16 | bit | |||
| Update Rate | On-Demand mode | 1k | Hz | ||
| Relative Accuracy | ±8 | LSB | |||
| DNL | ±1 | LSB | |||
| Zero Point Error | 6 | 19 | mV | ||
| Zero Point Error Drift | ±2 | μV/°C | |||
| Gain Error | ±1 | %FSR | |||
| Gain Temp Coefficient | ±2.5 | ppm | |||
| DC Crosstalk (Internal Ref) | 25 | μV | |||
| Offset Error | ±6 | ±19 | mV | ||
| DC Output Impedance | 0.5 | Ω | |||
| Short Circuit Current | 30 | mA |
