Ethan-T
Ethan-T is specifically designed for temperature measurement, providing 7-channel thermocouple input, supporting eight types of thermocouples: K, J, N, R, S, T, E, and B. It has a measurement range of -210°C ~ 1800°C and built-in cold-junction compensation.

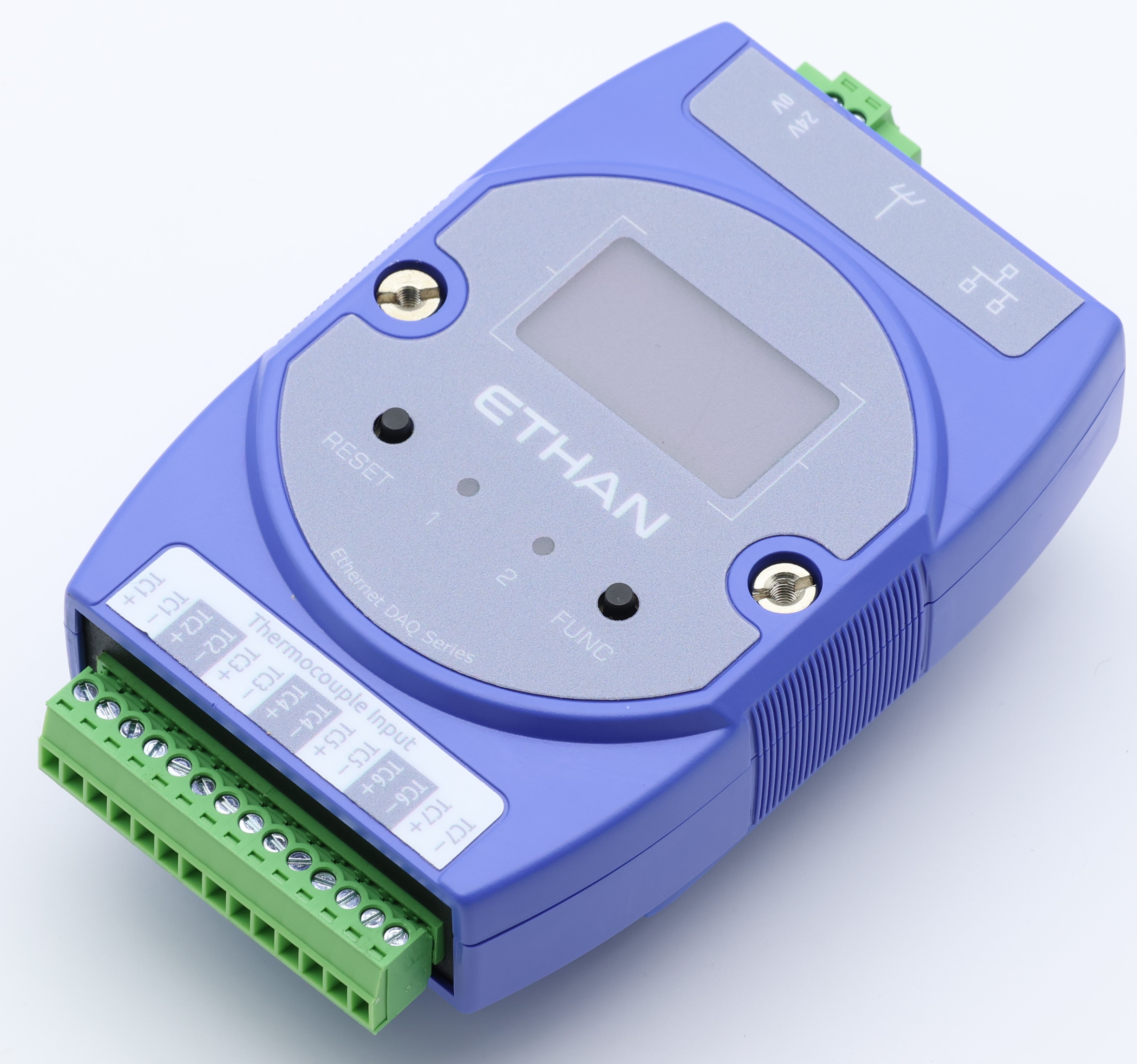

Product Appearance
Key Features
- Power input: 24VDC
- 10/100 Base-T Ethernet interface
- 7-channel thermocouple input
- Support sensor types: K, J, N, R, S, T, E, & B types
- Settling time: 160ms (Single channel)
- Supports Python, C#, and LabVIEW

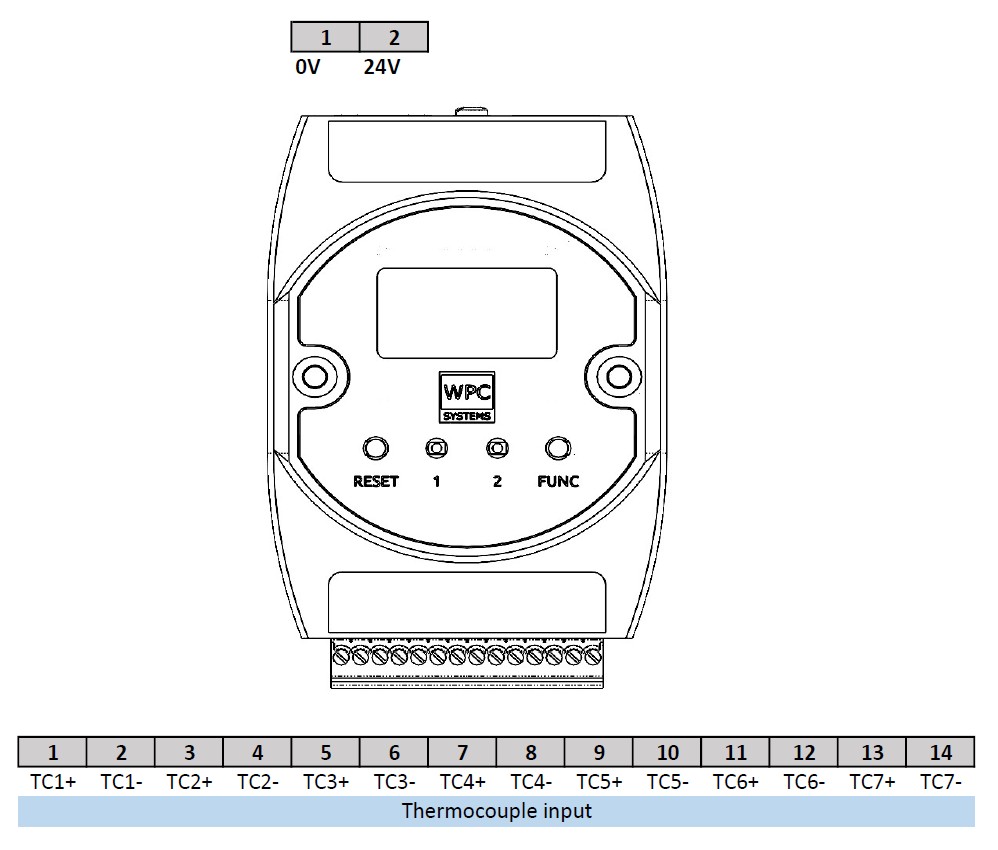

Pin Definition
Ethan-T Detailed Specifications (Thermocouple)
| Parameter | Test Conditions/Notes | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| ADC Resolution | 19 | bit | |||
| ADC Conversion Time | Depends on conversion mode | 90 | 185 | ms | |
| Temperature Range | Depends on thermocouple type | -210 | 1800 | °C | |
| Nominal Temp Resolution | 0.0078125 | °C | |||
| Thermocouple FSR & Linearity Error | ±0.15 | % | |||
| Cold-Junction Accuracy | ±0.7 | °C | |||
| Input Voltage Protection | ±45 | V | |||
| Noise Rejection Filter | Configurable | 50 | 60 | Hz | |
| CMRR | 70 | dB | |||
| 50/60Hz Noise Rejection | Fundamental and harmonics | 91 | dB |
