Ethan-L
Ethan-L is equipped with 6-channel mechanical relays (4x Form-A Normally Open contacts + 2x Form-C Changeover contacts), with a rated current of 2A and a maximum switching voltage of 250VAC / 220VDC, suitable for high-power load control.

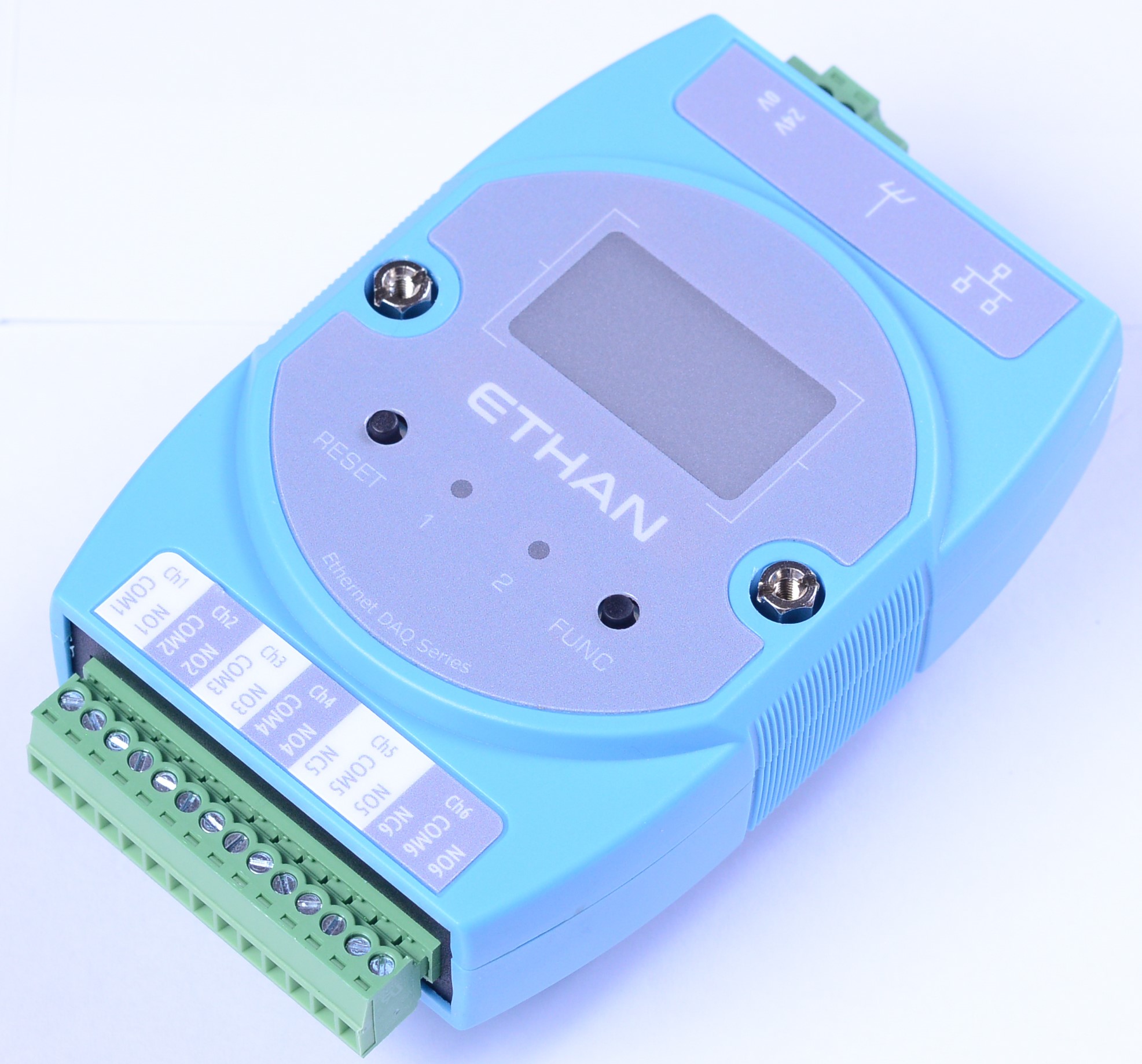

Product Appearance
Key Features
- Power input: 24VDC
- 10/100 Base-T Ethernet interface
- 6-channel high-quality mechanical relays
- 4-channel Form-A (Normally Open) + 2-channel Form-C (Normally Open + Normally Closed)
- Maximum current: 1A
- Operation time: 2ms (excluding bounce)
- Release time: 1ms (excluding bounce)
- Supports Python, C#, and LabVIEW

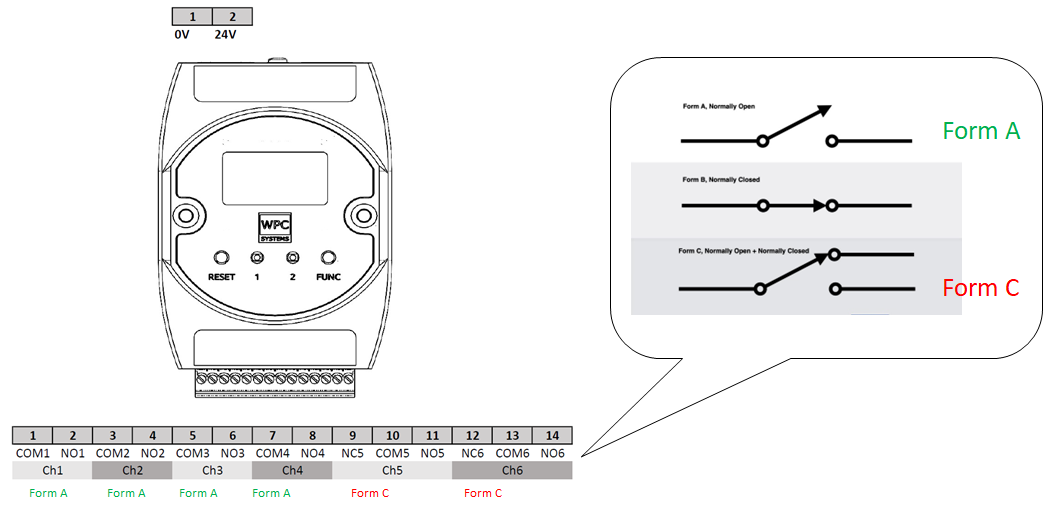

Pin Definition
Relay Specifications - Ethan-L
| Parameter | Test Conditions/Notes | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Rated Current | 2 | A | |||
| Continuous Limiting Current | 2 | A | |||
| Max Switching Voltage (AC) | 250 | VAC | |||
| Max Switching Voltage (DC) | 220 | VDC | |||
| Min Switching Voltage | 100 | μV | |||
| Max Switching Power | 60 | W | |||
| Initial Contact Resistance | 10mA/30mV | 50 | mΩ | ||
| Thermal EMF | 10 | μV | |||
| Mechanical Endurance (0W) | 100,000,000 | Operations | |||
| Electrical Endurance (30W) | Resistive 125VDC/0.24A | 500,000 | Operations | ||
| Electrical Endurance (30W) | Resistive 30VDC/1A | 500,000 | Operations | ||
| Operation Time | 1 | 3 | ms | ||
| Release Time | 1 | 3 | ms | ||
| Max Bounce Time | 1 | 5 | ms |
