Ethan-IA

Ethan-IA integrates voltage and current dual-mode input, providing 8-channel 24-bit resolution with the flexibility to switch between measuring ±10V voltage or ±20mA current signals, offering multi-purpose utility in a single card.

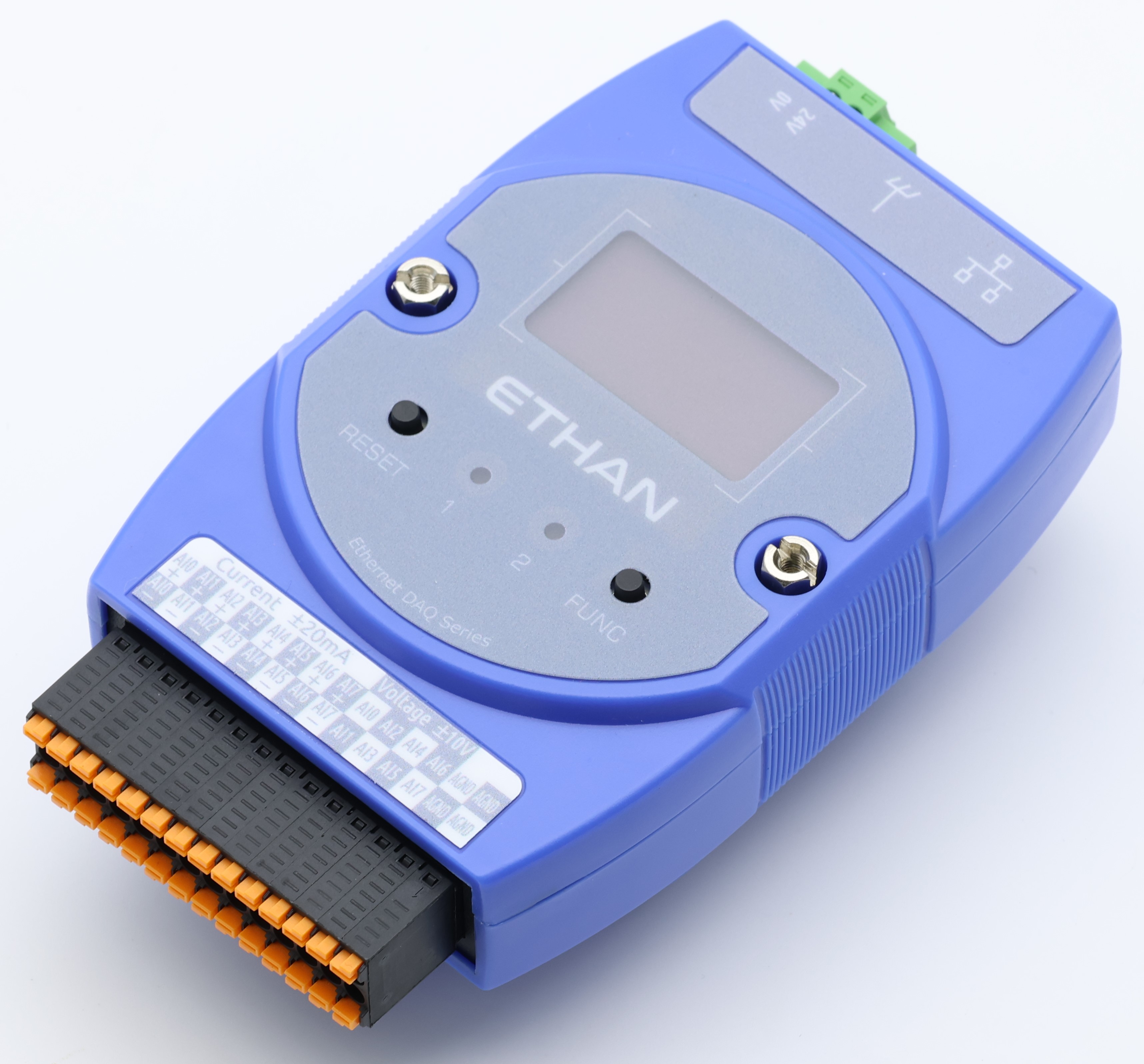

Product Appearance

---

Key Features

---

1. Power input: 24VDC
2. 10/100 Base-T Ethernet interface
3. Current Input: 8-channel multiplexed switching & 24-bit resolution
4. Voltage Input: 8-channel multiplexed switching & 24-bit resolution
5. Maximum update rate: 600Hz (Single channel)
6. Current input range: ±20mA
7. Voltage input range: ±10V
8. Supports Python, C#, and LabVIEW

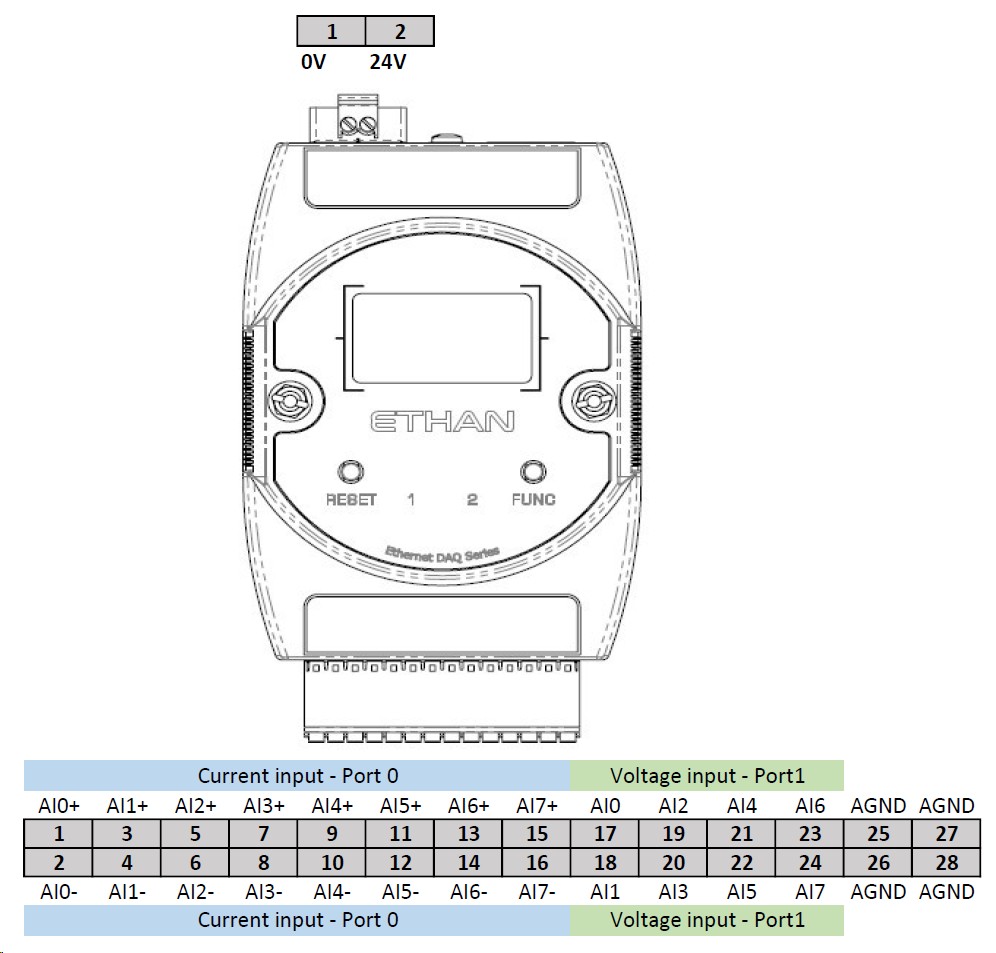

Pin Definition

---
