Ethan-EX-D

Ethan-EX-D provides expanded digital I/O capabilities, including 16-channel DI, 16-channel DO, 2-channel PWM, and 2-channel counter, meeting complex industrial control requirements.

Product Appearance​

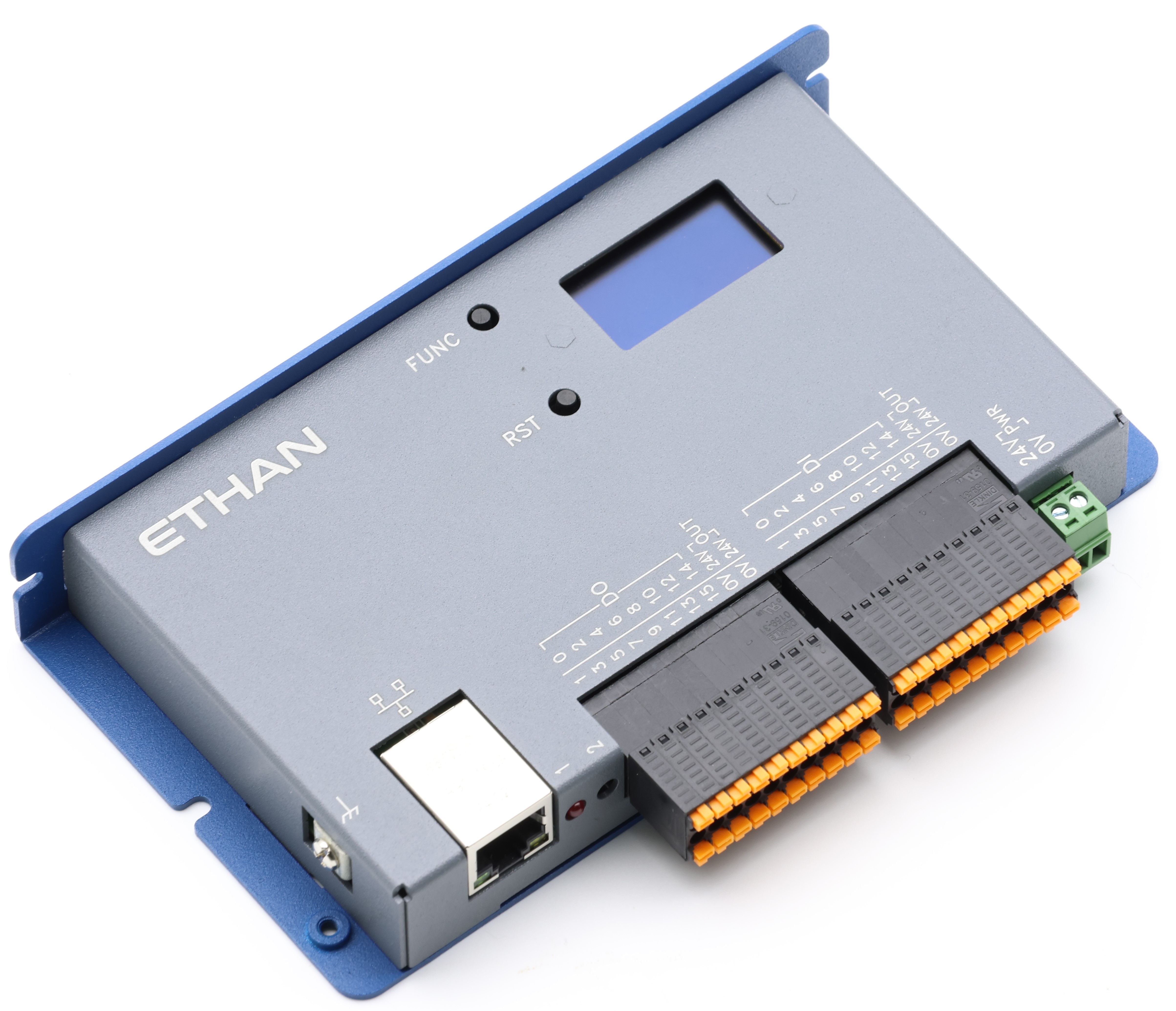

Ethan-EX-D Appearance

Key Features​

  1. Power input: 24VDC
  2. 10/100 Base-T Ethernet interface
  3. Digital Output (DO): 16-channel NPN, 24V opto-isolated
  4. Digital Input (DI): 16-channel NPN, 24V opto-isolated
  5. 2-channel PWM output
  6. 2-channel counter input
  7. Supports Python, C#, and LabVIEW

Pin Definition​

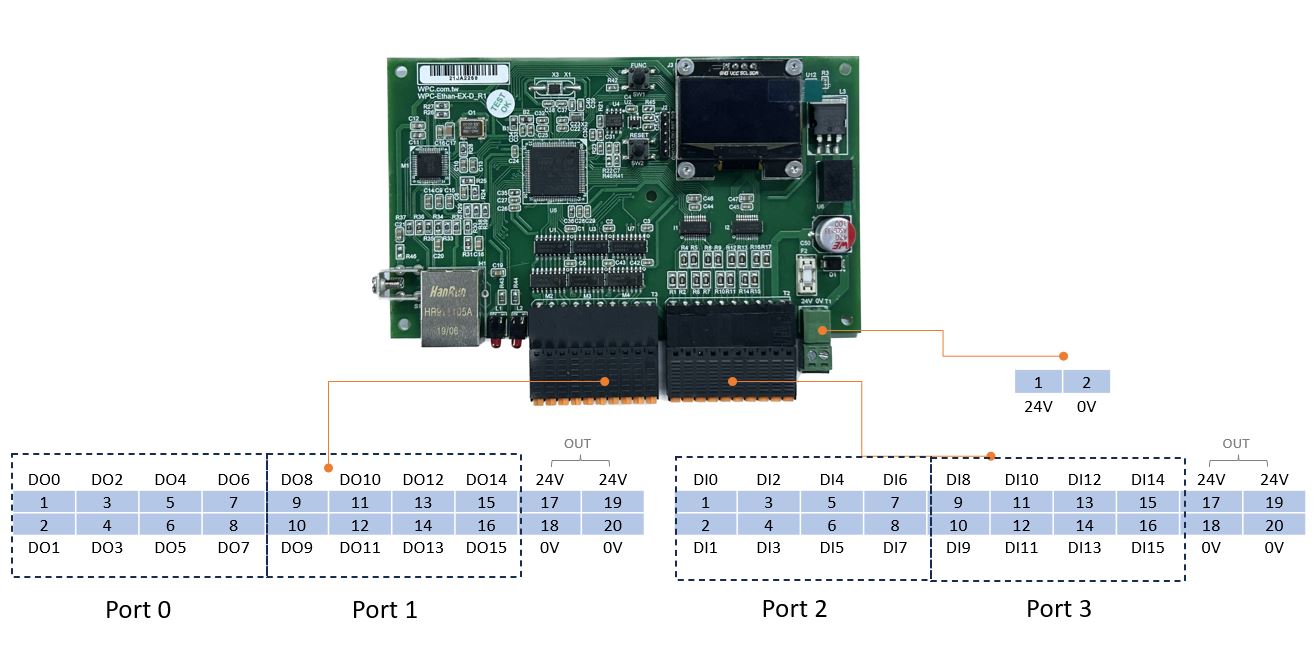

Ethan-EX-D Pinout
