Without Breakout Board

Interface Definition​

DIN 41612: This is the main signal output interface. We recommend using an original WPC breakout board to ensure signal integrity.

warning
  • Direct soldering or connection to the DIN 41612 interface is highly difficult and prone to damage. Unless necessary, it is strongly recommended to use a breakout board.

Appearance of Axis Card Without Breakout Board​

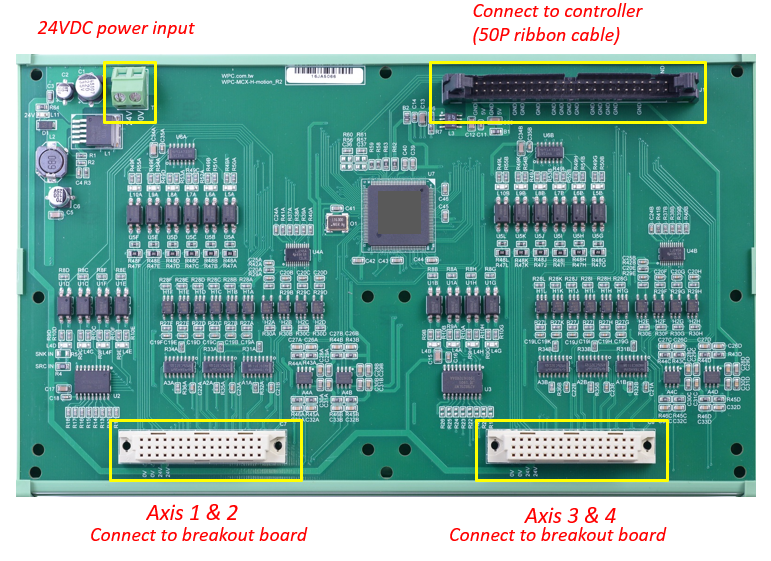

Motion Module Appearance
  • Top left 2-pin European-style terminal: External power supply 24VDC.
  • Top right IDC 50P: Connect to GECO/STEM controller.
  • Bottom DIN41612 48P: Connect to general or specific breakout boards.

System Installation​

warning
  • During installation, the DIN rail clip will raise the module by approximately 7.4 mm.
  • A clearance of approximately 82mm is recommended above the axis card to allow for the bending of the SCSI cable.
