24ch AI / 8ch AO Module
This module provides 24-channel analog input and 8-channel analog output functions.
Specifications
Analog Input (AI)
| Item | Specification |
|---|---|
| Connector | IDC 50P Connector |
| Channels | 24 ch (Synchronous sampling) |
| Resolution | 16 bit (Single-ended input) |
| Input Range | -10 ~ 10 V |
| Max Sampling Rate | 12 kHz |
Analog Output (AO)
| Item | Specification |
|---|---|
| Connector | IDC 50P Connector |
| Channels | 8 ch (Synchronous output) |
| Resolution | 16 bit (Single-ended output) |
| Output Range | 0 ~ 5 V |

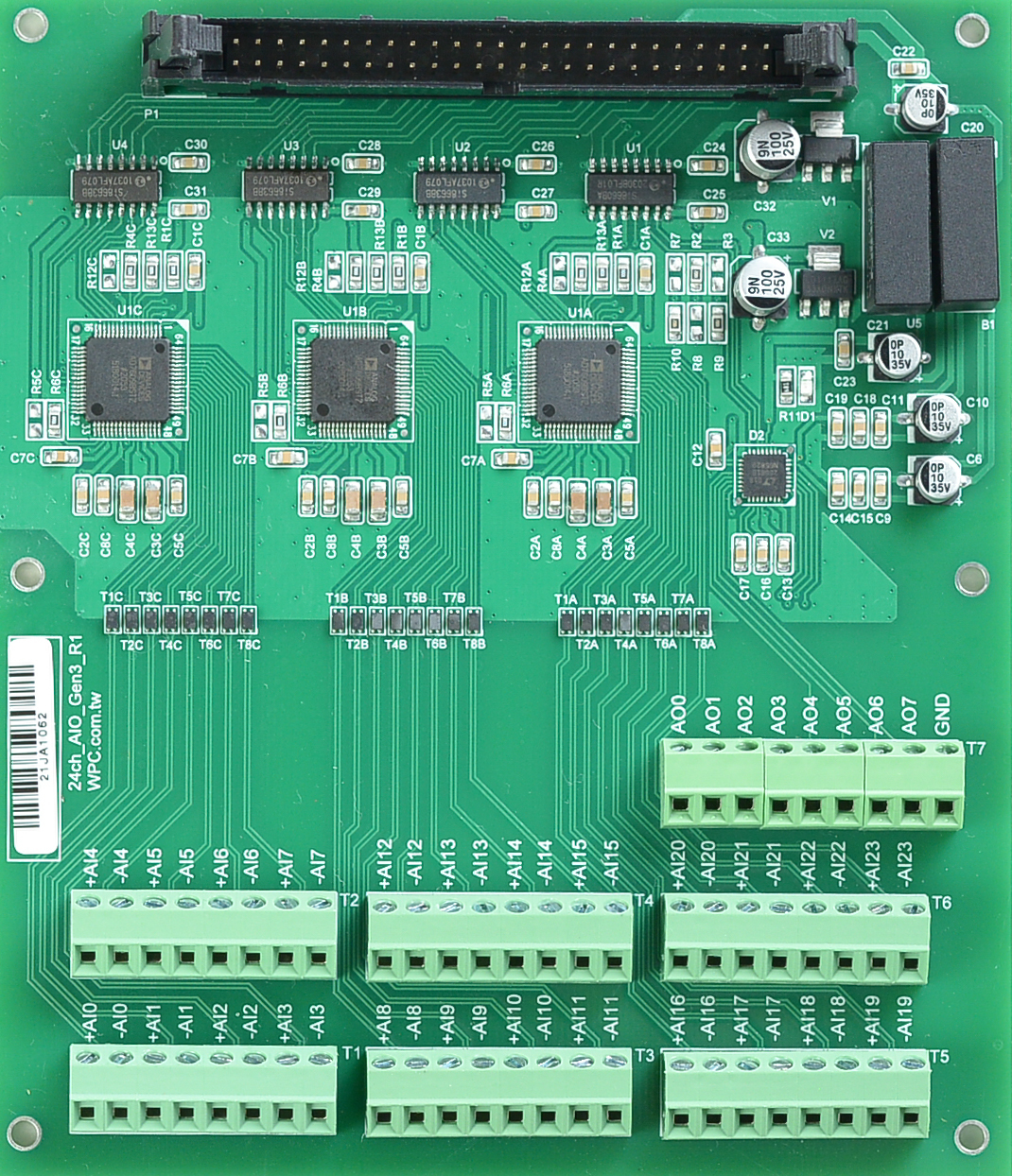

Appearance and Pinout
