16ch Thermocouple Module
This module provides 16-channel thermocouple inputs, supports K-type thermocouples, and is suitable for temperature measurement applications.
1. Specifications
| Item | Specification |
|---|---|
| Connector | IDC 50P Connector |
| Channels | 16 ch |
| Sensor Type | K-type Thermocouple |
| Max Sampling Rate | 10 Hz |
| Accuracy | ± 2°C |
| Measurement Range | -200 ~ 700 °C |
| Resolution | 14 Bit, 0.25 °C |
| Isolation | Channel to ground isolation |

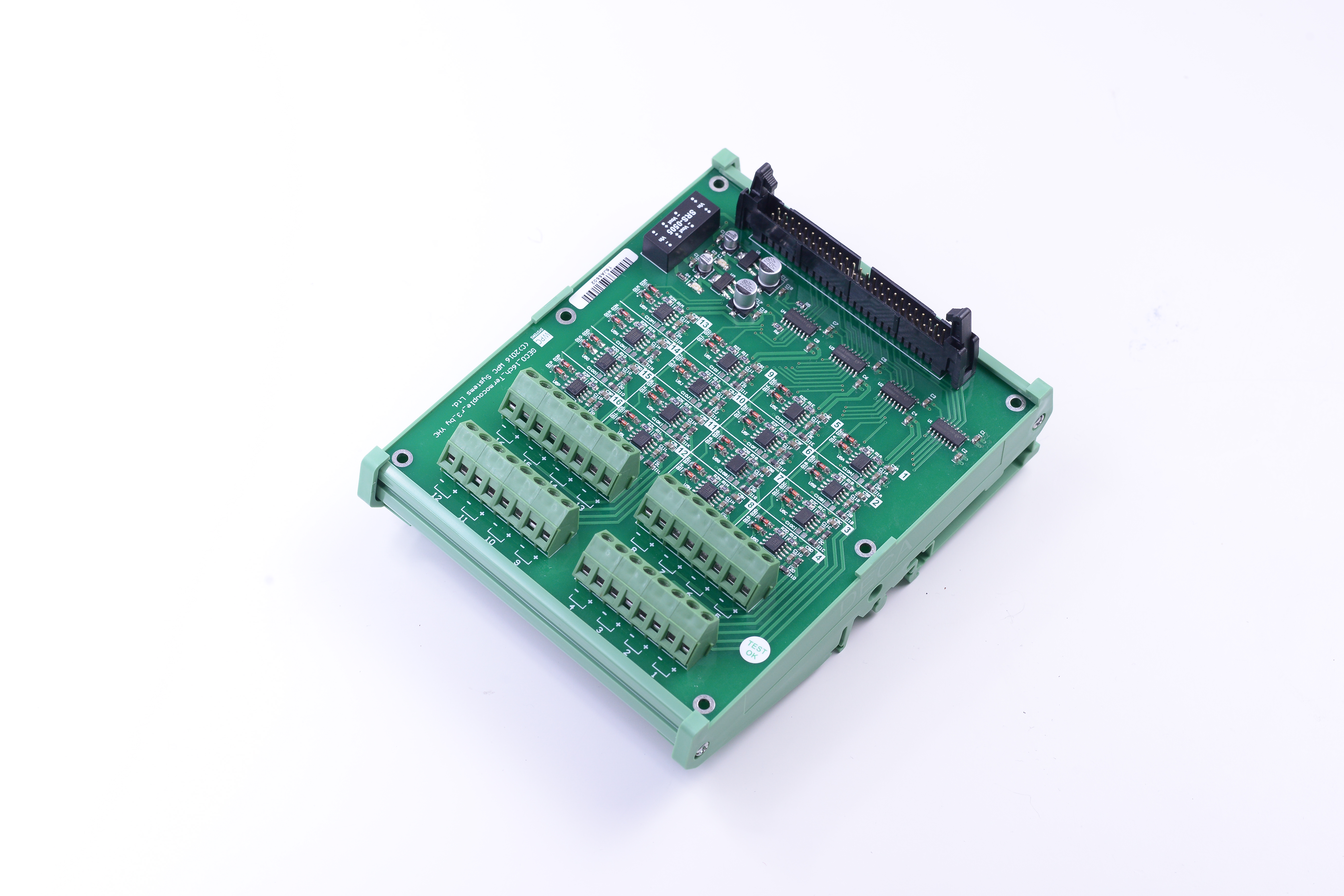

2. Appearance
