RS-232 / 422 / 485 Module

This module provides multi-channel serial communication interfaces, supporting RS-232, RS-422, and RS-485 standards, with channel-to-channel isolation.

1. Specifications​

ItemSpecification
PowerNo external power required
RS-2324 ch
RS-485/4224 ch (Configurable)
IsolationChannel to channel isolation

2. Appearance and Pinout​

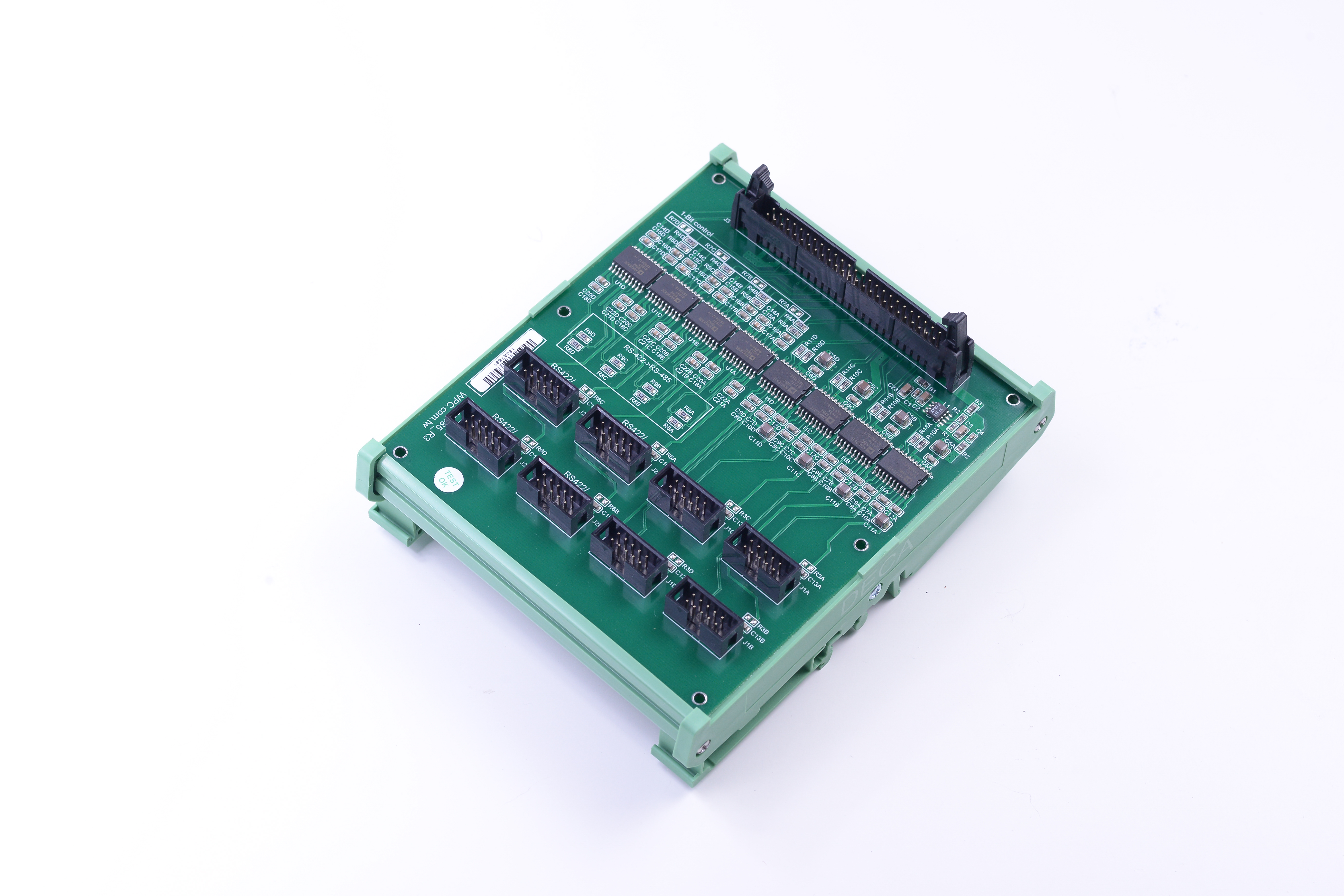

Serial Module Appearance

Pinout​

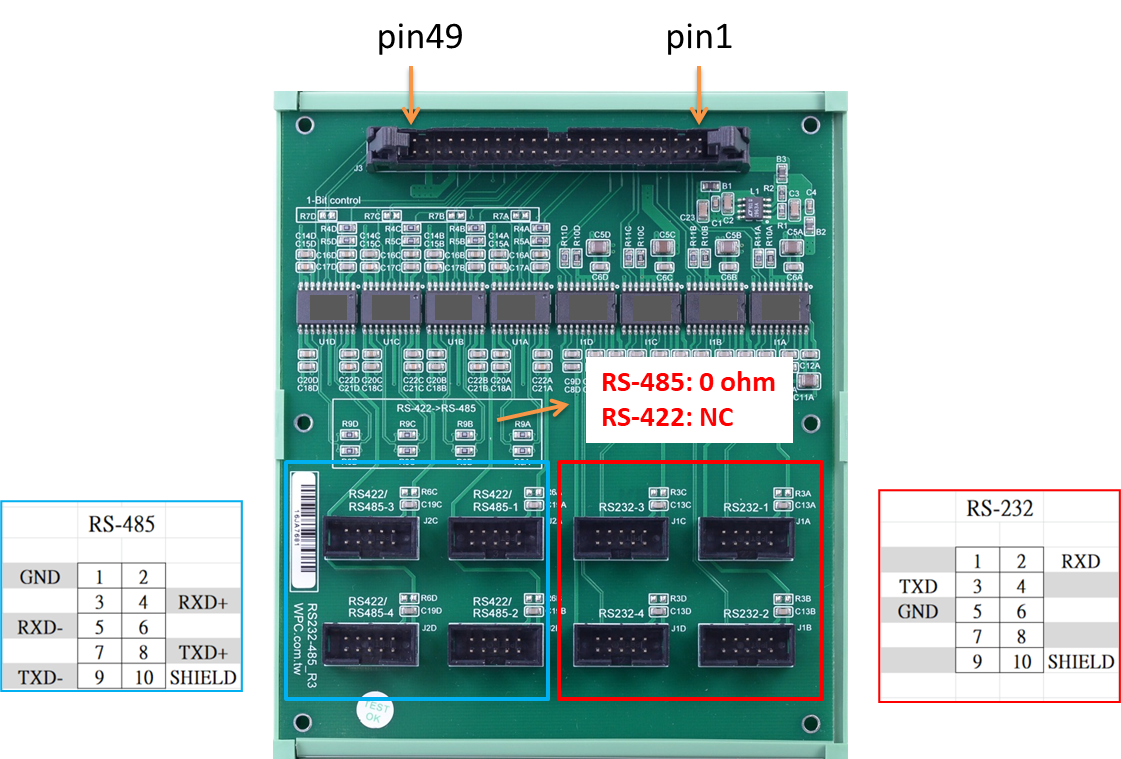

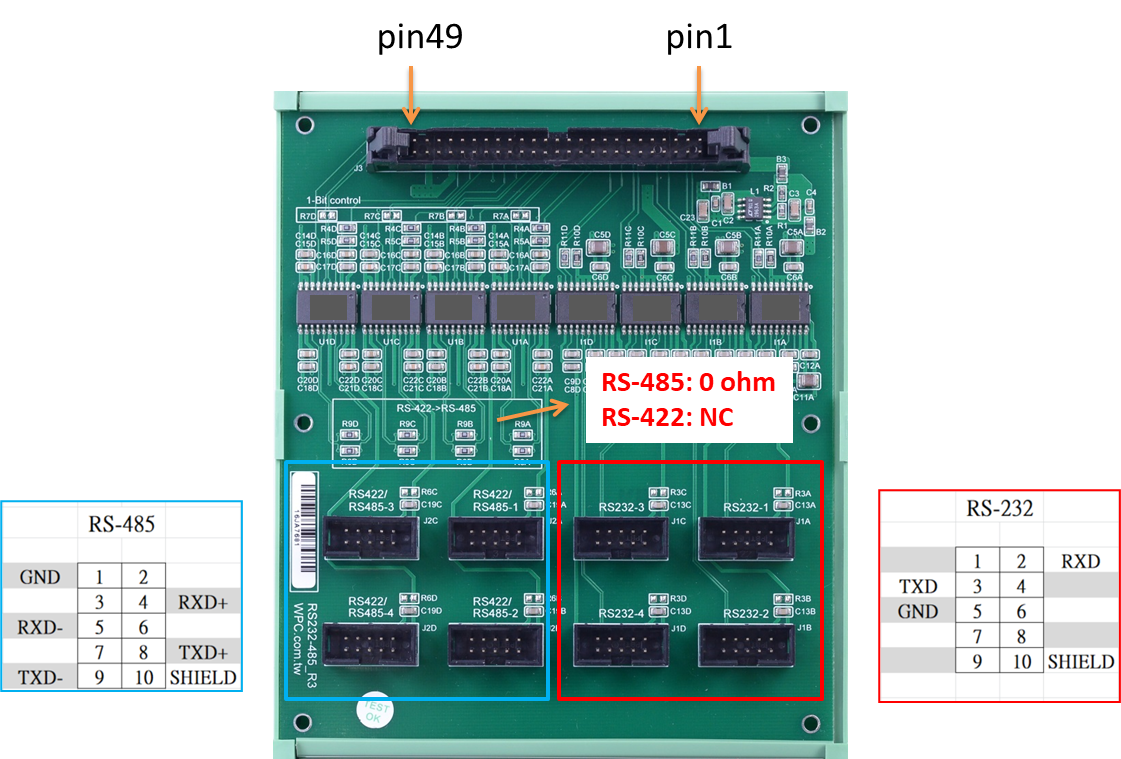

Serial Module Pinout
