This module provides 24-channel analog input and 8-channel analog output functions, suitable for multi-channel signal acquisition and control applications.
1. Specifications
| Item | Specification |
|---|
| Connector | IDC 50P Connector |
| Channels | 24 ch (Simultaneous sampling) |
| Resolution | 16 bit (Single-ended) |
| Input Range | -10 ~ 10 V |
| Max Sampling Rate | 50 kHz |
| Isolation | Channel to ground isolation |
Analog Output (AO)
| Item | Specification |
|---|
| Connector | IDC 50P Connector |
| Channels | 8 ch (Simultaneous output) |
| Resolution | 16 bit (Single-ended) |
| Output Range | -10 ~ 10 V |

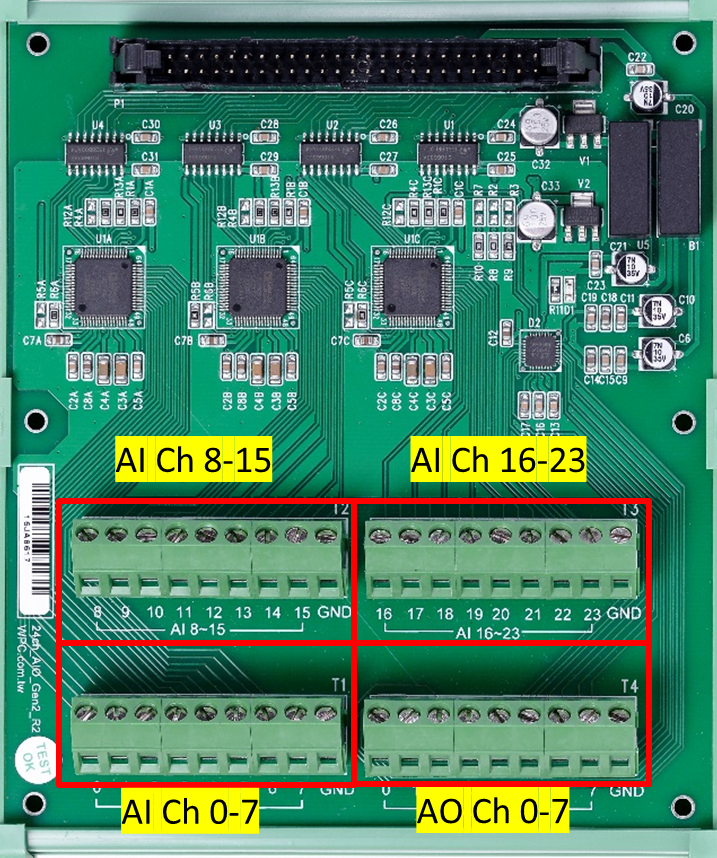

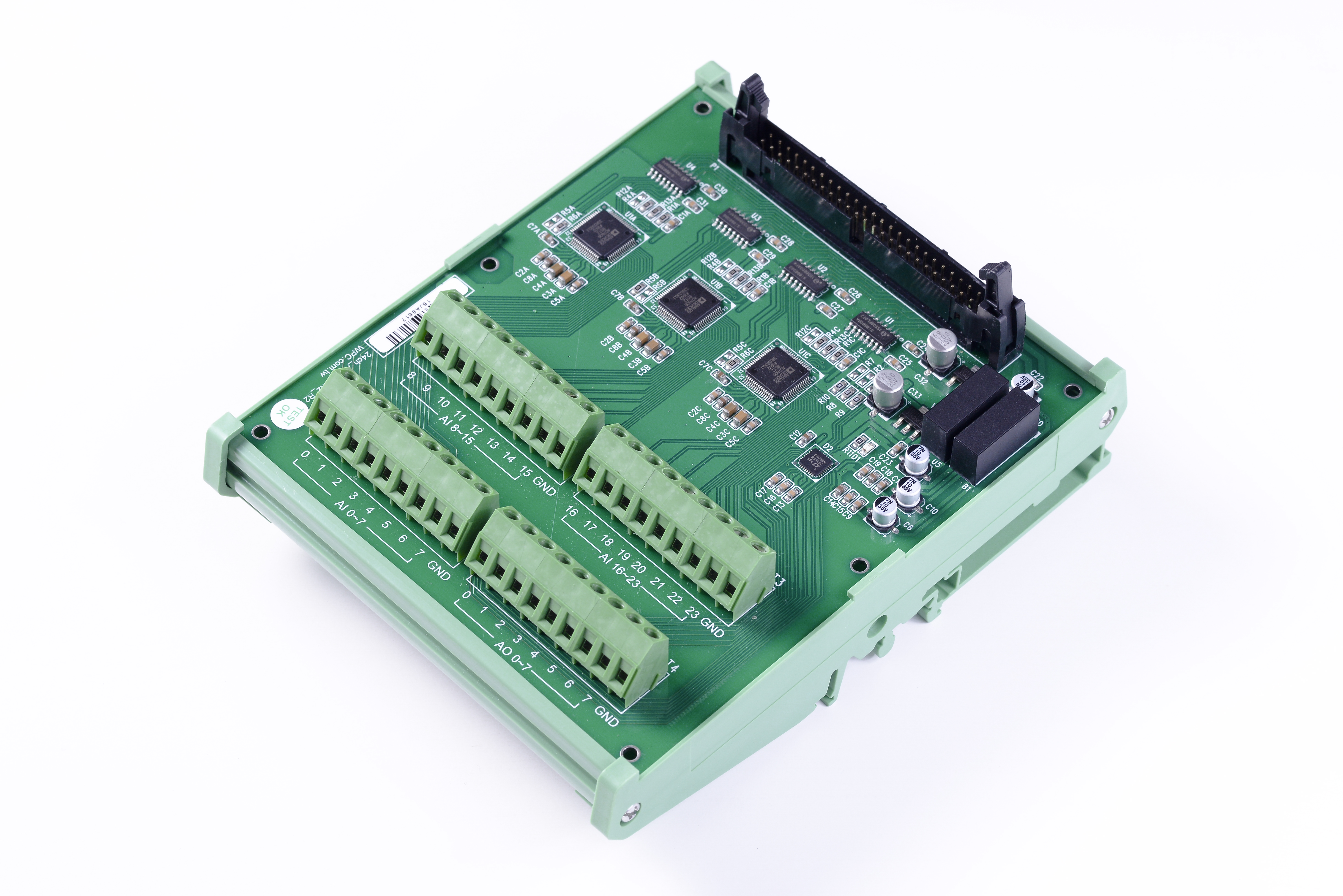

2. Appearance and Pinout
