PYCO WIFI is a fully functional Python programmable controller that integrates 8-channel AI/AO/DI/DO, built-in Wi-Fi and OLED screen, supports SD card expansion, suitable for independent operation and IoT applications.

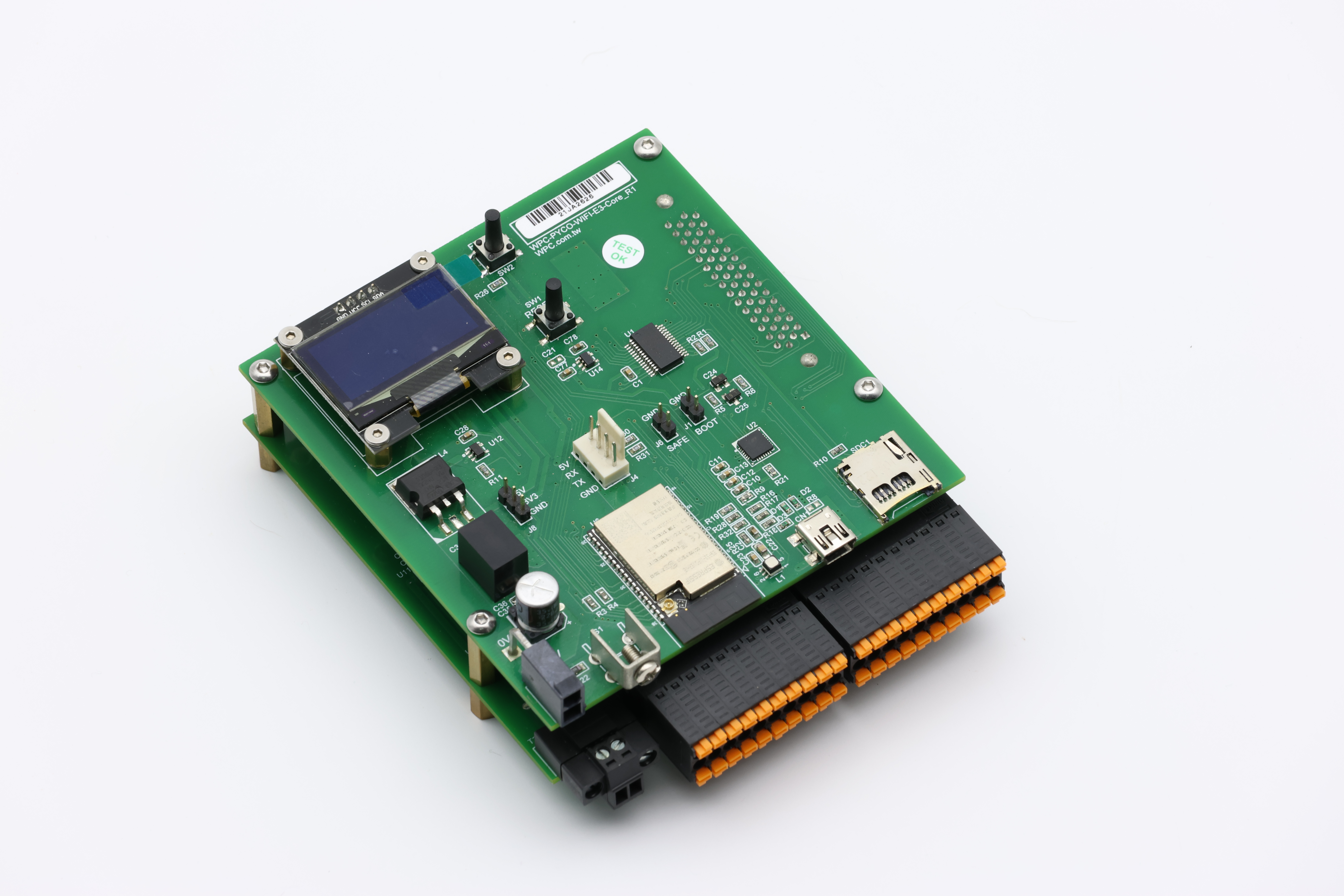

Product Appearance
Key Features
- Python Programmable: Supports Stand-Alone Python application development.
- Digital Output (DO):
- 8 channels NPN/PNP (Opto-isolated 24V).
- Digital Input (DI):
- 8 channels NPN/PNP (Opto-isolated 24V).
- Analog Output (AO):
- 8 channels simultaneous output, 16-bit single-ended.
- Output range: ±10V.
- Analog Input (AI):
- 8 channels simultaneous sampling, 16-bit single-ended.
- Input range: ±10V.
- 24V DC Power Input.
- Web-based Configurator: Web-based configuration interface.
- Wi-Fi: 802.11 b/g/n (2.4 GHz to 2.5 GHz).

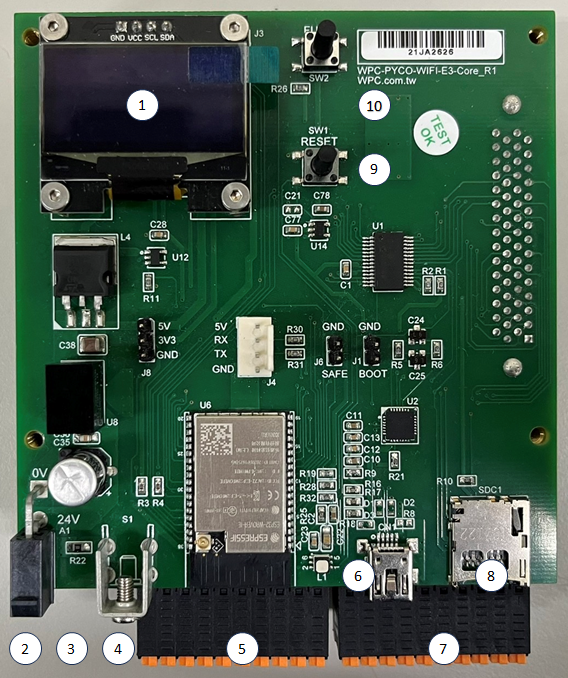

Parts Description
- LCD Screen: Displays network information, firmware details, serial number, and other functional information.
- 24V DC Input: Main power input.
- Secondary 24V DC Input: Secondary power input.
- Protective Earth (PE).
- Analog Connector.
- USB A to Mini USB Connector.
- Digital I/O Connector.
- SD Card Slot.
- Reset Button:
- Short press: Reboot device.
- Hold FUNC and press Reset: Reboot and enter bootloader mode.
- FUNC Button:
Pin Definition
Analog I/O Connector
| AO0 | AO2 | AO4 | AO6 | AGND | AI0 | AI2 | AI4 | AI6 | AGND |
|---|
| 1 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 |
| 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| AO1 | AO3 | AO5 | AO7 | AGND | AI1 | AI3 | AI5 | AI7 | AGND |
Digital I/O Connector
| DO0 | DO2 | DO4 | DO6 | 0V | DI0 | DI2 | DI4 | DI6 | 24Vo |
|---|
| 1 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 |
| 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| DO1 | DO3 | DO5 | DO7 | 0V | DI1 | DI3 | DI5 | DI7 | 24Vo |
