PYCO WIFI MINI AI

PYCO WIFI MINI AI is a mini-sized Python controller focused on 8-channel analog input and 9DoF IMU attitude estimation, with built-in Wi-Fi, making it ideal for lightweight data acquisition and sensing applications.

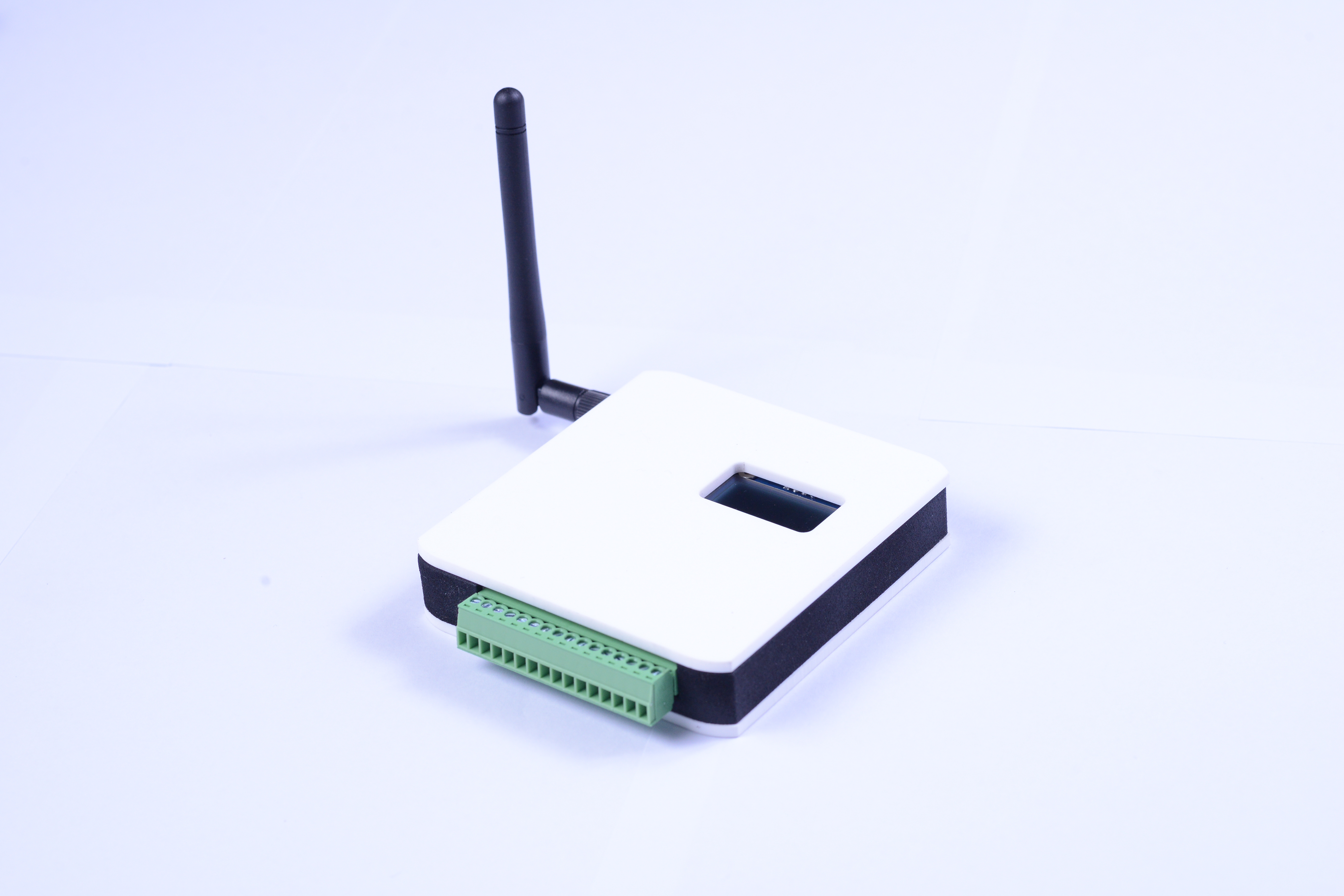

Product Appearance​

PYCO WIFI MINI AI Appearance

Key Features​

  • Python Programmable: Supports Stand-Alone Python application development.
  • Analog Input (AI):
    • 8 channels simultaneous sampling, 16-bit single-ended.
    • Input range: ±10V.
  • 9DoF IMU: Built-in attitude estimation (Accelerometer/Gyroscope/Magnetometer).
  • Web-based Configurator: Web-based configuration interface.
  • Wi-Fi: 802.11 b/g/n (2.4 GHz to 2.5 GHz).

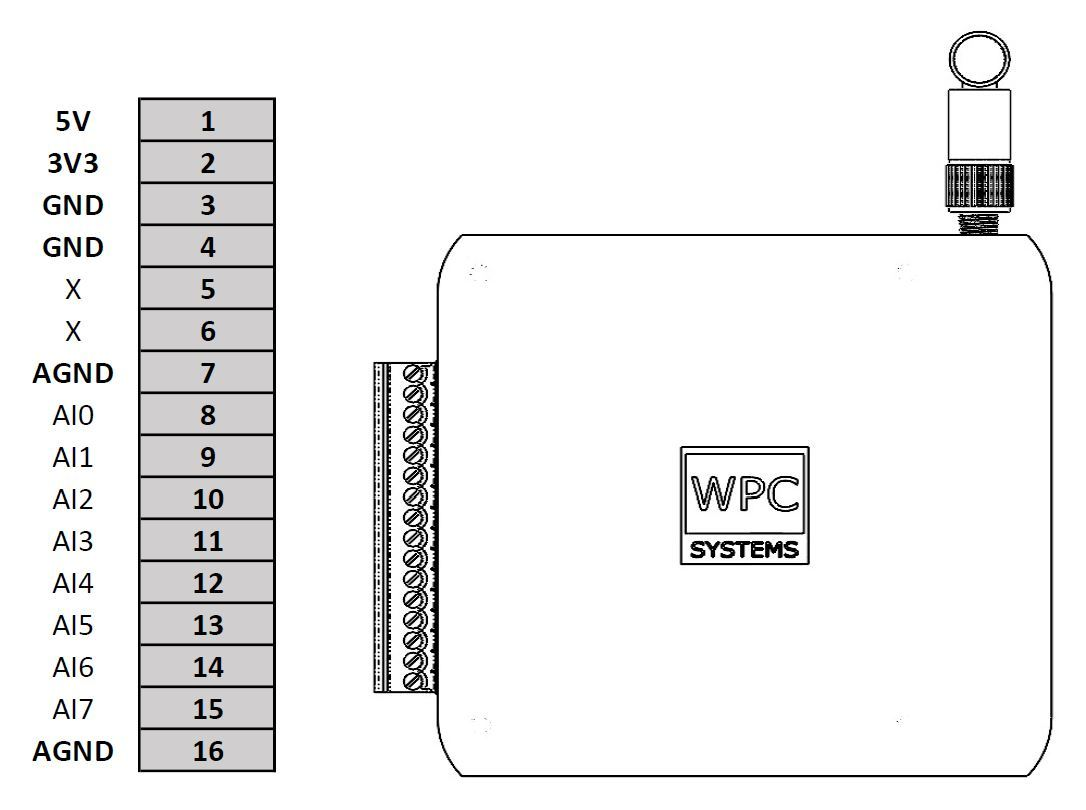

Pinout​

Analog I/O Connector

PYCO WIFI MINI AI Pinout
