PYCO WIFI MINI AO

PYCO WIFI MINI AO is a mini-sized Python controller focused on 8-channel analog output and 9DoF IMU attitude estimation, with built-in Wi-Fi, making it ideal for lightweight signal generation and control applications.

Product Appearance​

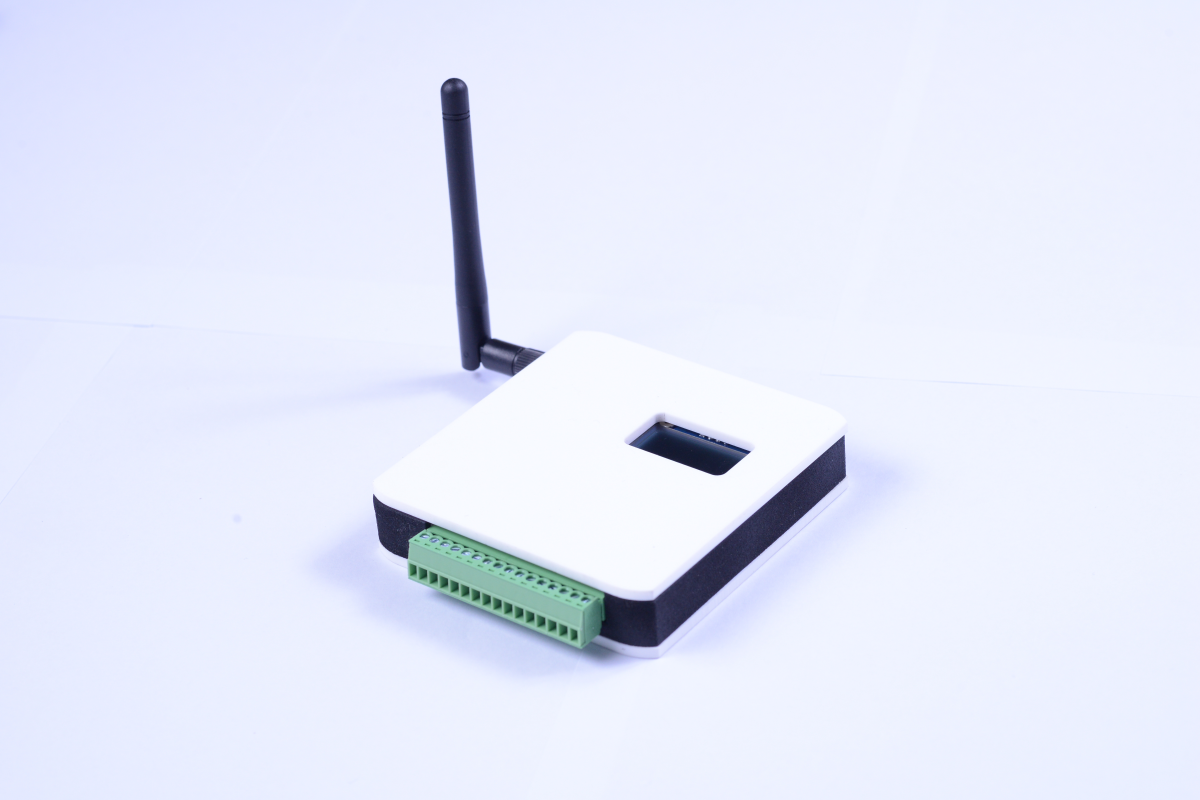

PYCO WIFI MINI AO Appearance

Key Features​

  • Python Programmable: Supports Stand-Alone Python application development.
  • Analog Output (AO):
    • 8 channels simultaneous output, 16-bit single-ended.
    • Output range: ±10V.
  • 9DoF IMU: Built-in attitude estimation (Accelerometer/Gyroscope/Magnetometer).
  • Web-based Configurator: Web-based configuration interface.
  • Wi-Fi: 802.11 b/g/n (2.4 GHz to 2.5 GHz).

Analog I/O Connector

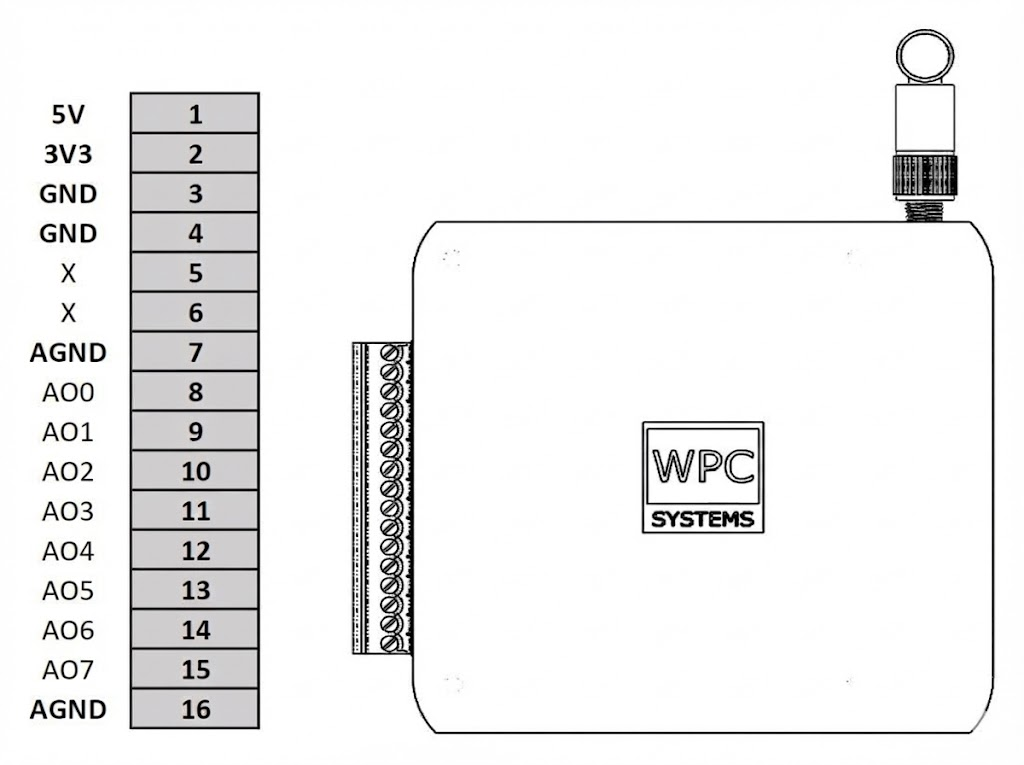

PYCO WIFI MINI AO Pinout
