PYCO ETH is a full-featured Python programmable controller, integrating 8-channel AI/AO/DI/DO, with built-in Ethernet and an OLED display, making it ideal for industrial applications requiring wired network connectivity.

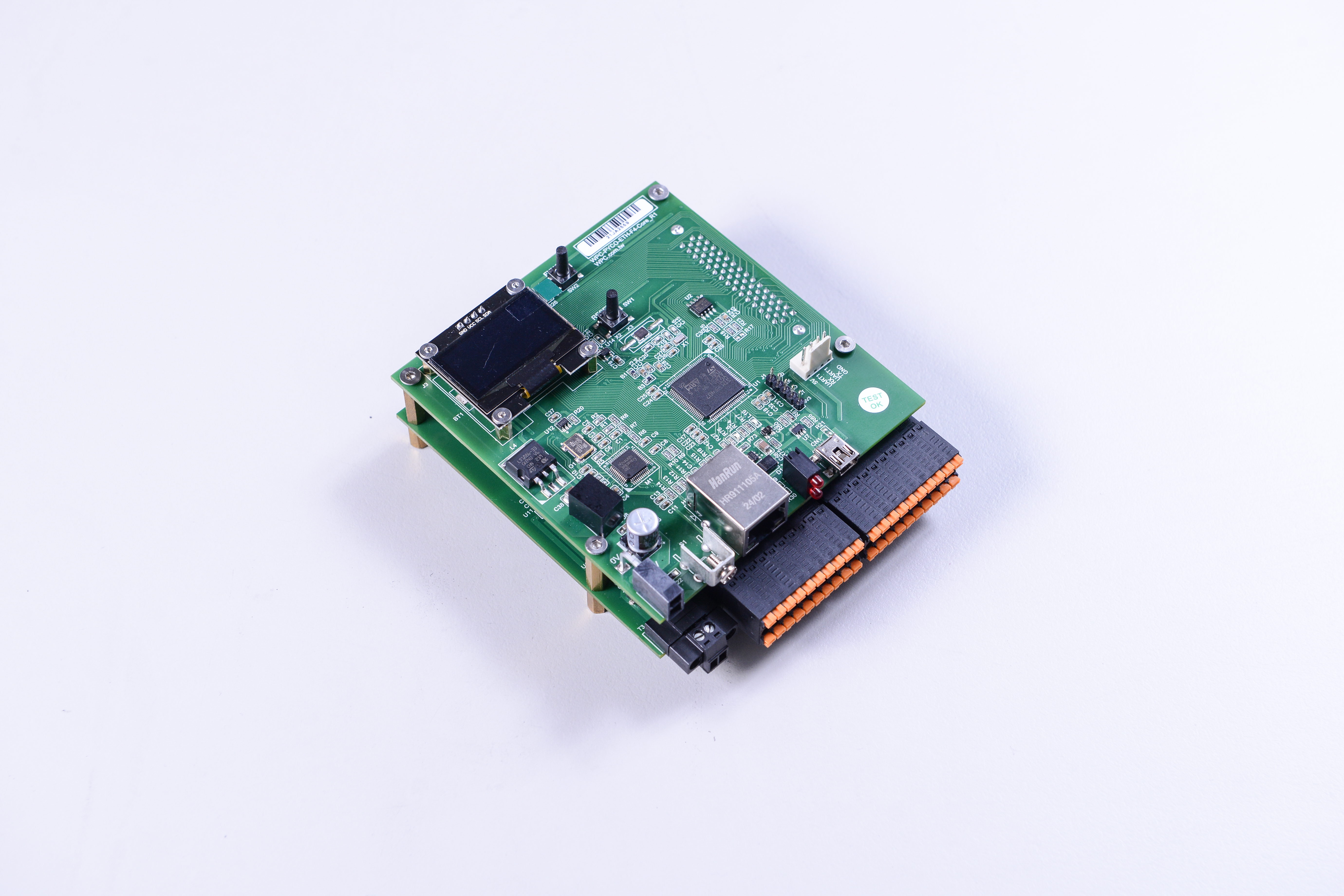

Product Appearance
Key Features
- Python Programmable: Supports Stand-Alone Python application development.
- Digital Output (DO):
- 8 channels NPN/PNP (Opto-isolated 24V).
- Digital Input (DI):
- 8 channels NPN/PNP (Opto-isolated 24V).
- Analog Output (AO):
- 8 channels simultaneous output, 16-bit single-ended.
- Output range: ±10V.
- Analog Input (AI):
- 8 channels simultaneous sampling, 16-bit single-ended.
- Input range: ±10V.
- 24V DC Power Input.

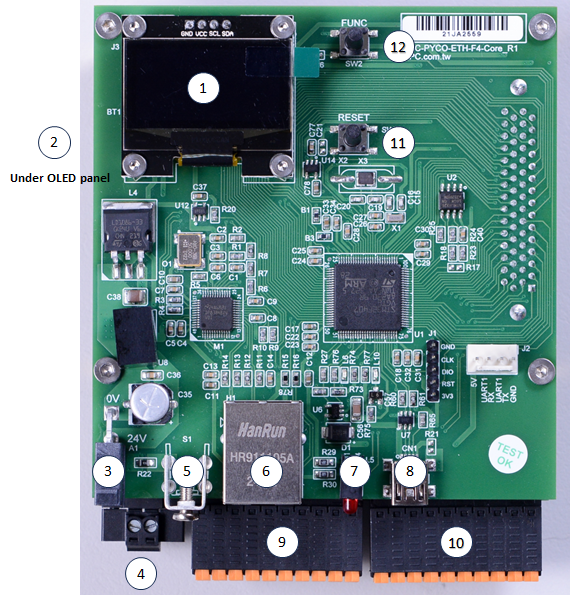

Component Names
- OLED Display: Shows network information, firmware details, serial number, and other functional information.
- RTC Battery Holder: Used to maintain the real-time clock.
- 24V DC Input: Primary power input.
- Secondary 24V DC Input: Secondary power input.
- Protective Earth (PE).
- 10/100M Ethernet Port.
- LED Indicators.
- USB Type-A Connector.
- Analog Connector.
- Digital I/O Connector.
- Reset Button:
- Short press: Reboots the device.
- Press and hold FUNC while pressing Reset: Reboots and enters bootloader mode.
- FUNC Button:
- Long press for approx. 3 seconds: Resets IP to default (192.168.1.110).
- Short press: Switches the OLED display page.
Pinout
Analog I/O Connector
| AO0 | AO2 | AO4 | AO6 | AGND | AI0 | AI2 | AI4 | AI6 | AGND |
|---|
| 1 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 |
| 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| AO1 | AO3 | AO5 | AO7 | AGND | AI1 | AI3 | AI5 | AI7 | AGND |
Digital I/O Connector
| DO0 | DO2 | DO4 | DO6 | 0V | DI0 | DI2 | DI4 | DI6 | 24Vo |
|---|
| 1 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 |
| 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| DO1 | DO3 | DO5 | DO7 | 0V | DI1 | DI3 | DI5 | DI7 | 24Vo |
