General Functions

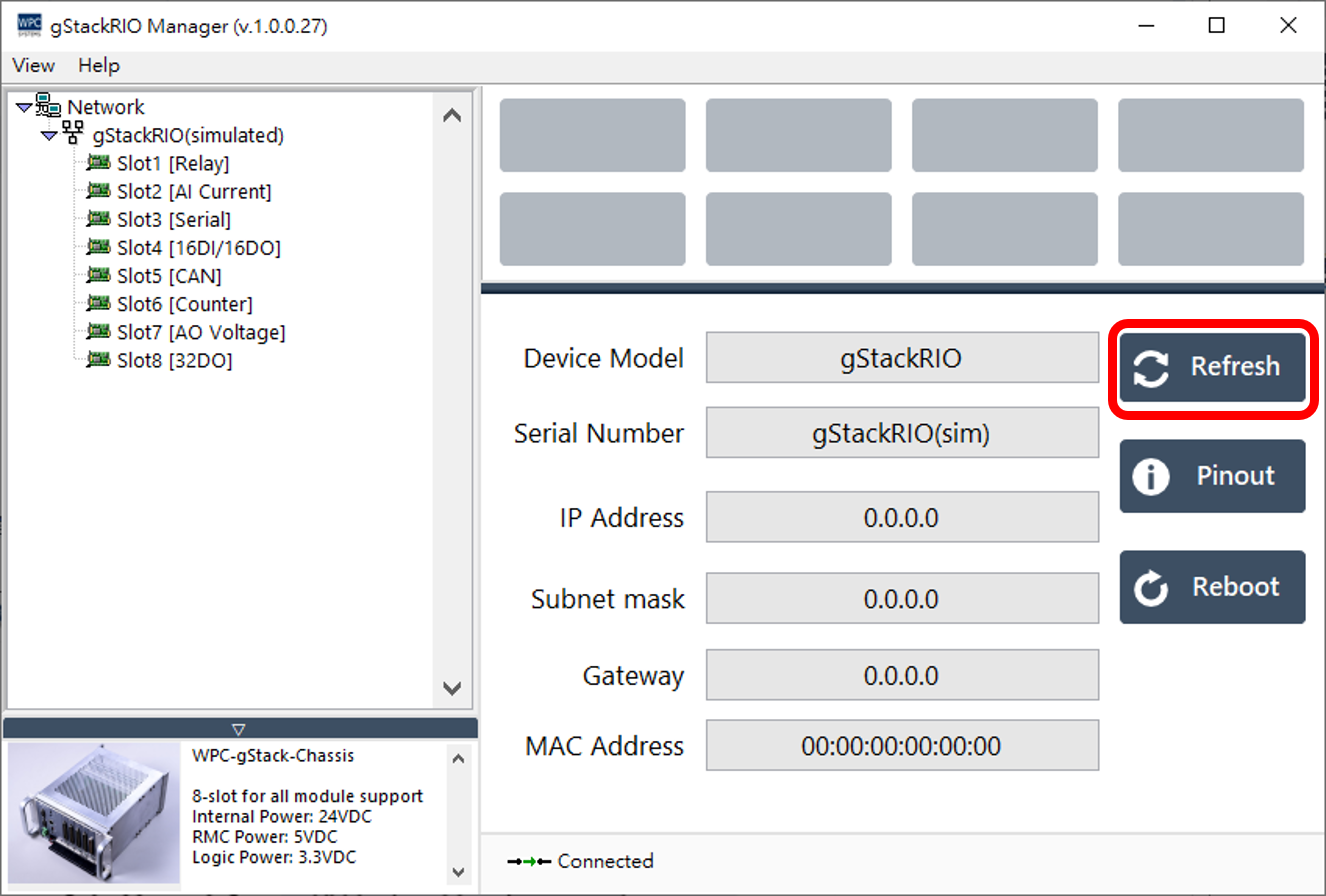

Refresh​

Click the "Refresh" button to re-read and update gStack-RIO device information.

gstackRIO_manager_refresh

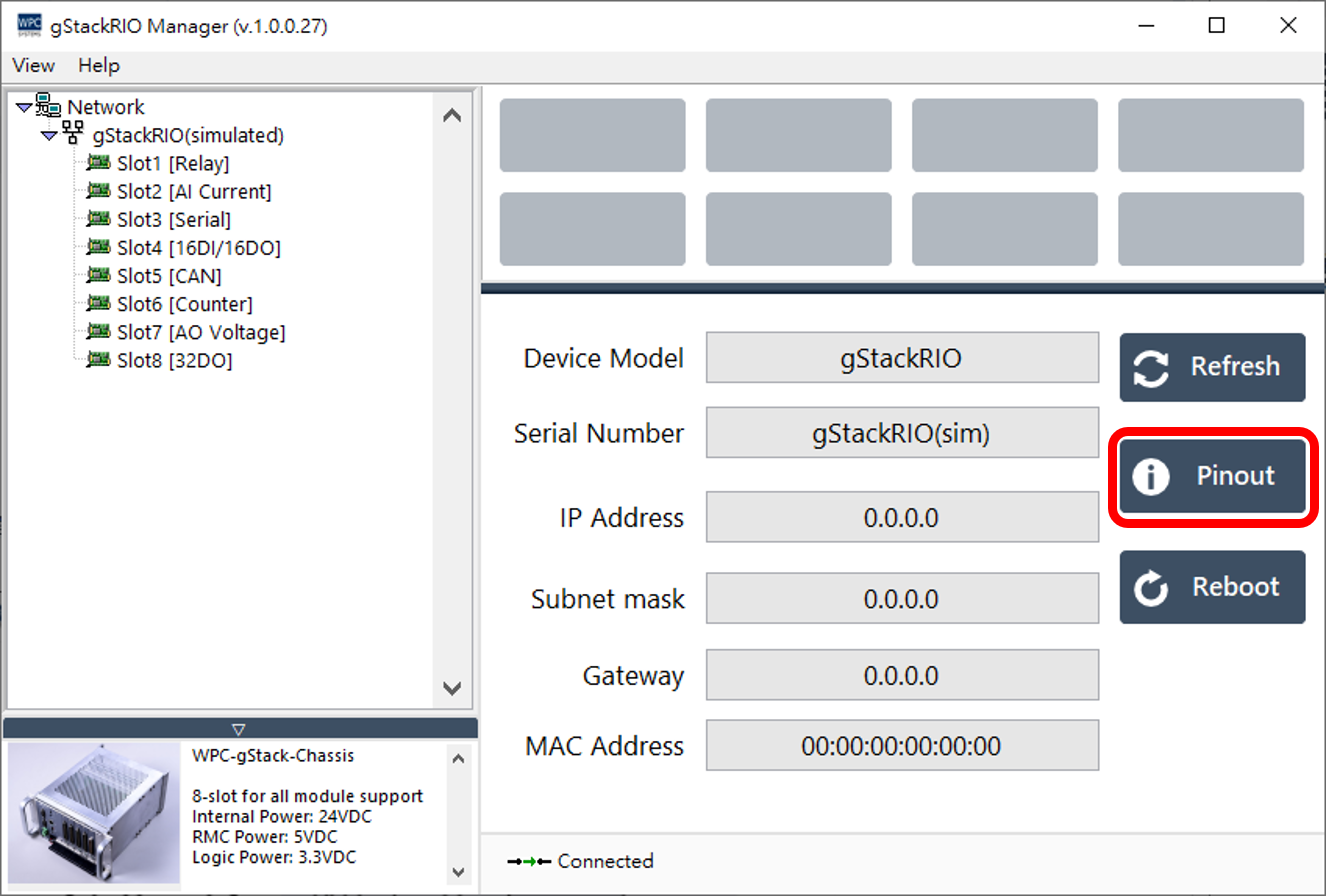

Pinout​

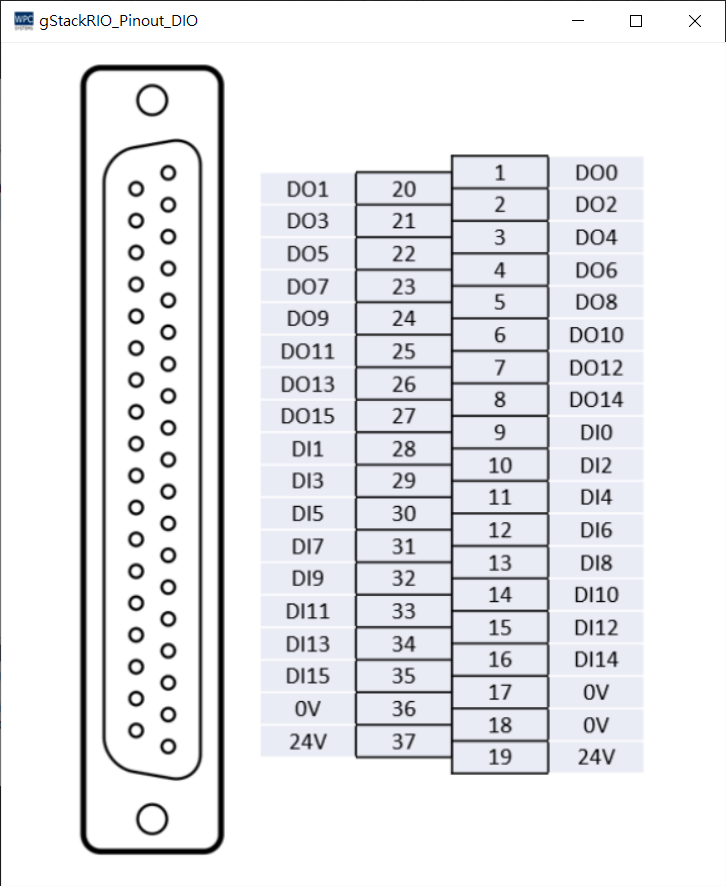

Click the "Pinout" button to display the pinout diagram. The window size can be adjusted based on the user's requirements.

gstackRIO_manager_pinout
gstackRIO_manager_pinout1

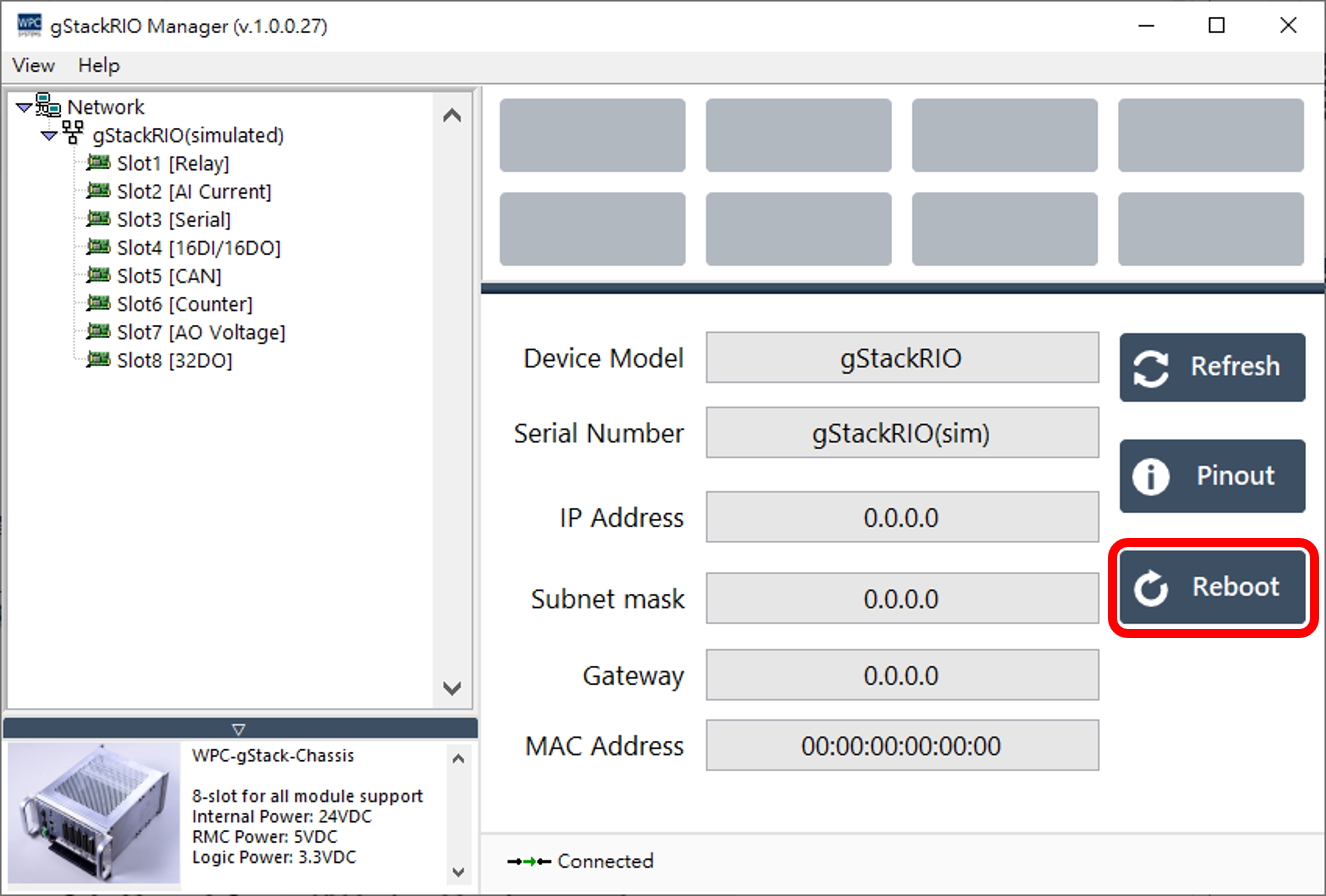

Reboot​

To reboot the device via software, please click the "Reboot" button.

gstackRIO_manager_reboot

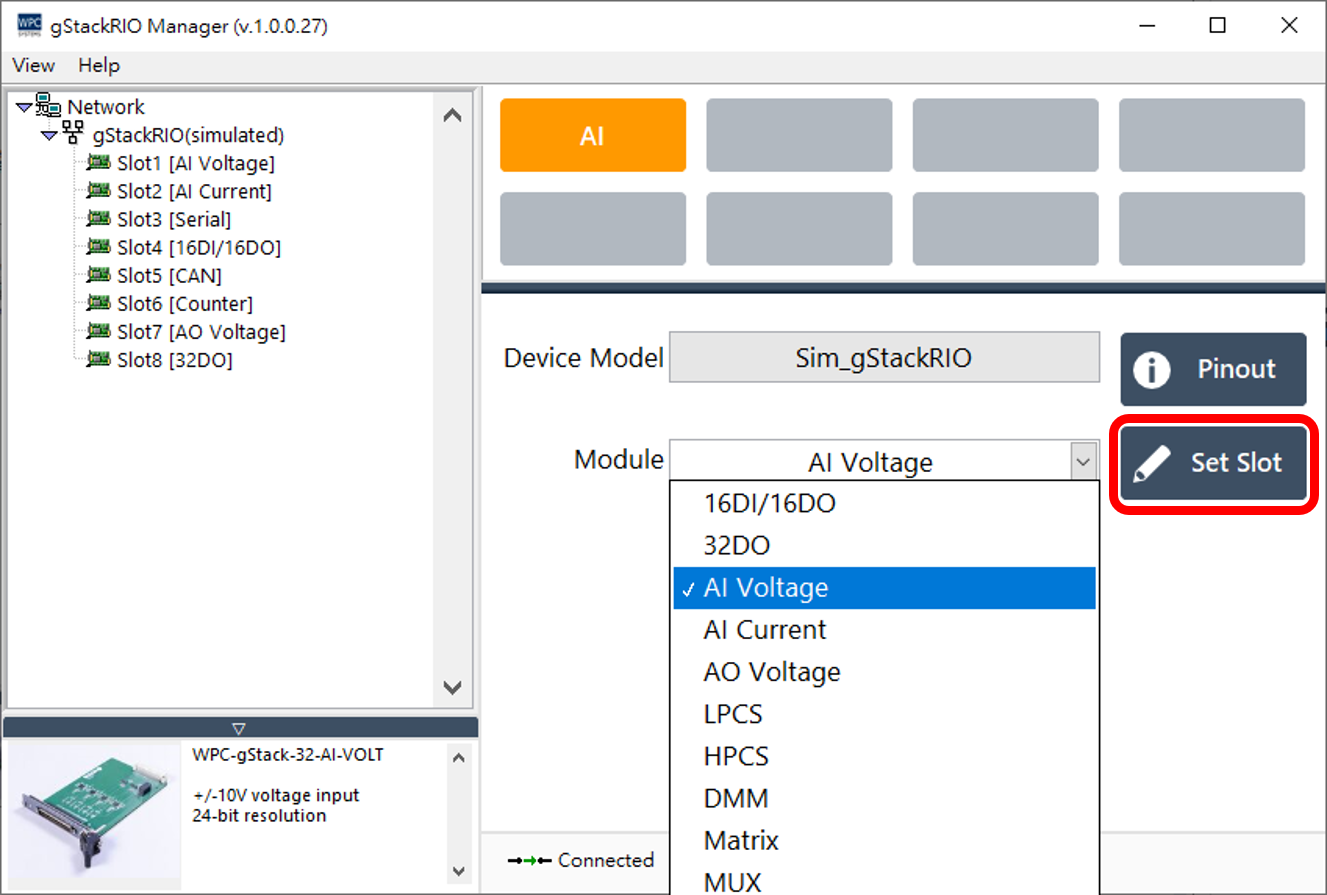

Set Slot​

Set the module into a specific slot.

gstackRIO_manager_setslot
