Using GECO Driver

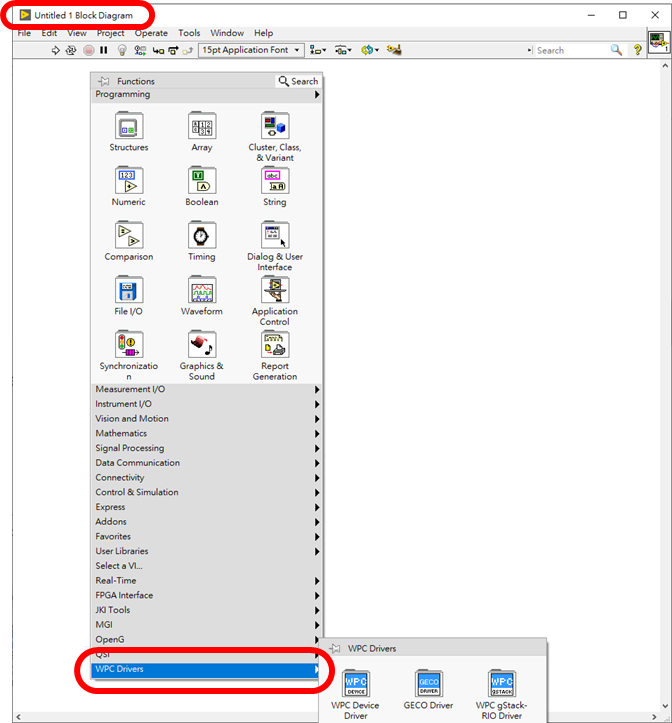

Open LabVIEW and Driver Palette​

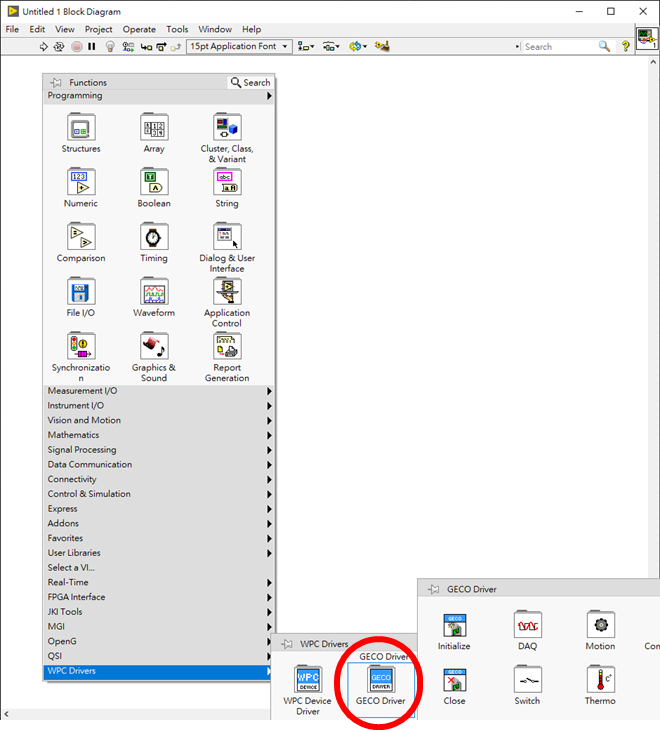

Open LabVIEW, right-click on the Block Diagram to expand the Functions palette. You will see the "WPC Drivers" category, where all GECO drivers are located.

geco_driver_open

GECO Driver API​

GECO Driver provides various APIs related to device control and data acquisition:

geco_driver_overview

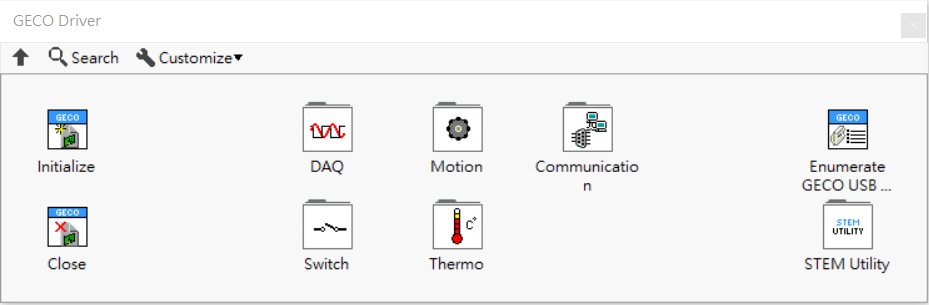

GECO Driver​

geco_driver_overview1

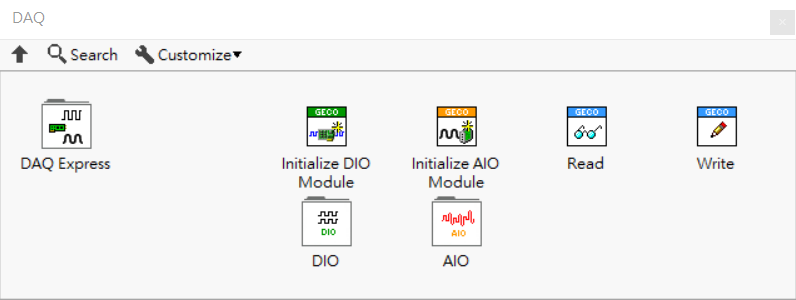

GECO Driver - DAQ​

geco_driver_overview-DAQ

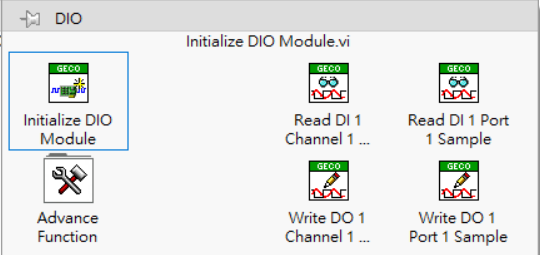

GECO Driver - DAQ - DIO​

geco_driver_overview-DAQ-DIO

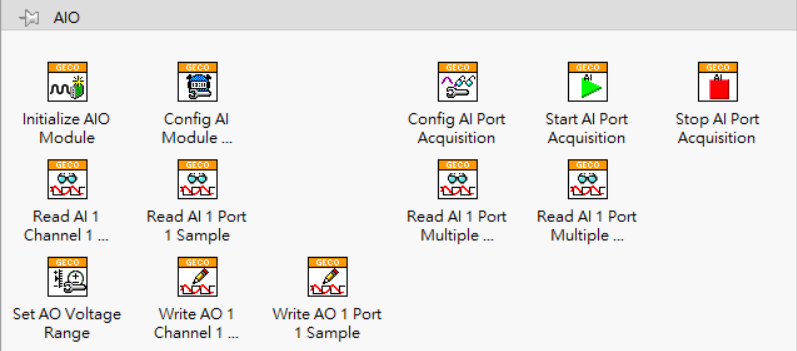

GECO Driver - DAQ - AIO​

geco_driver_overview-DAQ-AIO

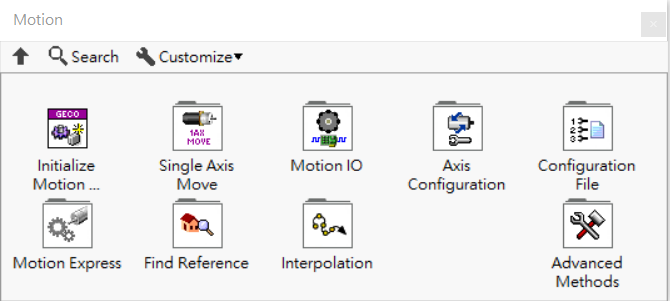

GECO Driver - Motion​

geco_driver_overview-Motion

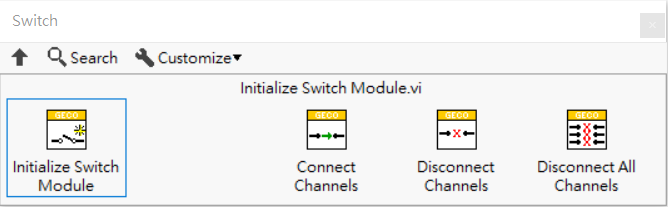

GECO Driver - Switch​

geco_driver_overview_Switch

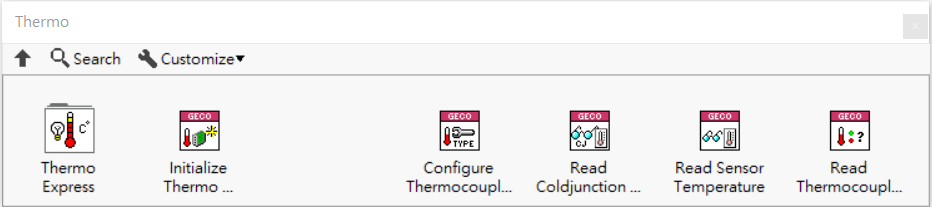

GECO Driver - Thermo​

geco_driver_overview_Thermo

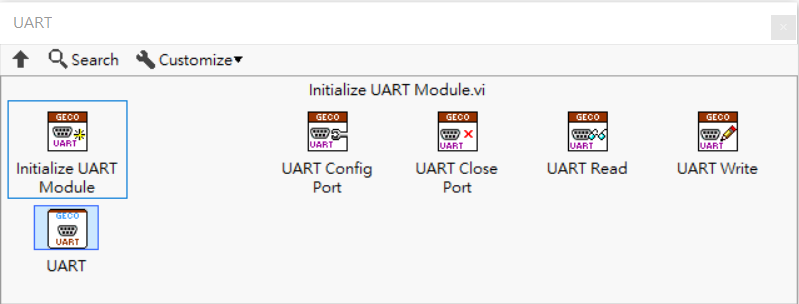

GECO Driver - Communication - UART​

geco_driver_overview_UART
